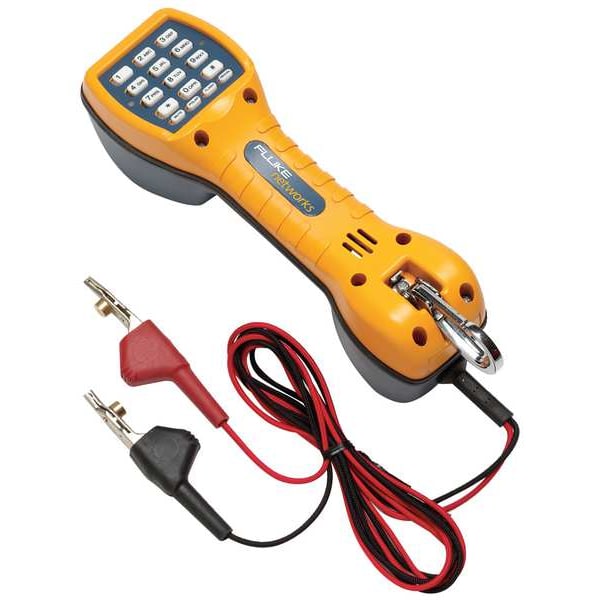

Fluke Networks Test Set, TS30 w/ ABN, Waterproof 30800009 - main

Test Set, TS30 w/ ABN, Waterproof

  • Mfr # 30800009

  • Zoro # G1065854

product price: $459.99
/ea
Free Shipping & Returns

Key Features

Application
Butt in Test Set, Line Monitor, Telephone Test Set
For Use With
Telephone Lines
Features
Audible Ringer for Callbacks, 20-Foot Drop Safe, Last Number Redial, Mute Function
Connector Type
ABN
Line Polarity Indicator
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30800009
Zoro #
G1065854
UPC #
754082039334
Country of Origin
Taiwan, Province of China

Dimensions

Depth
10"
Height
2.8"
Width
3.3"

Details

Item
Test Set
Application
Butt in Test Set, Line Monitor, Telephone Test Set
For Use With
Telephone Lines
Features
Audible Ringer for Callbacks, 20-Foot Drop Safe, Last Number Redial, Mute Function
Connector Type
ABN
Line Polarity Indicator
Yes
Dialing Method
Pulse, Tone
Data Safe Monitor
Yes
Waterproof
Yes
Standards
TNV-3
Ringer Equivalent (REN)
0. 14
Return Loss
>14 dB (ref 600 Ω)
DTMF Output Tone Frequencies Tone Frequency Error
per ITU-T Q. 23 ±1. 5% Maximum
Resistance During Pulse Open
> 200,000 Ω
Inter-digit Interval
800 ms %, -10%
Protection Against Alternating Current Overvoltage
The TS30 survives up to 250 Vrms across its test leads.
Telecom Electrical
TNV-3
Monitor Mode Impedance
>120,000 Ω 300 Hz to 3400 Hz
Temperature Operating Storage
-40 °F to +151 °F (-40°C to +66°C) || -4 °F to +140 °F (-20°C to +60°C)
Peak Acoustic Output of the Receiver
<120 dBspl
Line Current Range
15 mA to 120 mA
Flash Duration
600 ms ±100 ms
Relative Humidity
5% to 95%
Pulsing Rate
10 pps pps
Open/Close Ratio
60/40
Memory Capacity Memory Retention
23 digits 8-minutes nominal
High vs Low Tone Difference
2dB +1db
Ringer Loudness
> 70 dBA at 1 meter
Safety Classification
IP54
Measurements
10 in x 2. 83 in x 3. 34 in (25. 5 cm x 7. 2 cm x 8. 5 cm)
High Group Low Group
-4 dBm (into 600 Ω) -6 dBm (into 600 Ω)
Resistance to Continuous Current (Talk Mode)
275 Ω typical at 20 mA
Product Name
TS30 30800009 Device Tester
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
Adapters Included
ABN
Maximum Operating Humidity
95 %
IP Rating
IP54
Number of Digits
23
Testing Functions
Hi-Z Monitoring

Description

Test Set, Adapters Included ABN, Connector Type ABN, Data Safe Monitor Yes, Dialing Method Pulse, Tone, Features Audible Ringer for Callbacks, 20-Foot Drop Safe, Last Number Redial, Mute Function, IP Rating IP54, Number of Digits 23, Testing Functions Hi-Z Monitoring, Maximum Operating Humidity 95 Percent, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -4 Degrees F, Standards TNV-3, Waterproof Yes
