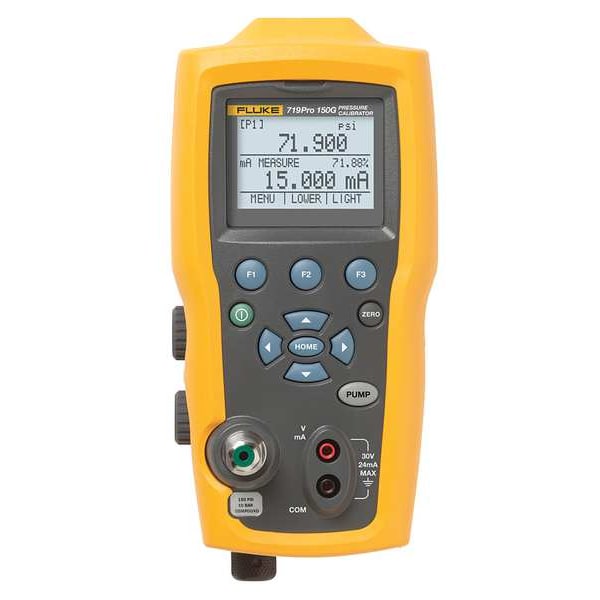

Pressure Calibrator, -12 to 150 psi

  • Mfr # FLUKE-719PRO 150G
  • Zoro # G6072026
product price:
$
5,558.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes
1/4 in NPT to 1/4 in ISO Adapter, Alligator Clips, Carrying Case, Fluid Trap, Test Leads
Display
Multiline LCD
Standards
IEC 61326-1
Interface
RS-232, USB, Wireless
Loop Supply Voltage
24 V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-719PRO 150G
Zoro #
G6072026
UPC #
095969673808
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Battery Size
AA

Details

Item
Handheld Pressure Calibrator
Includes
1/4 in NPT to 1/4 in ISO Adapter, Alligator Clips, Carrying Case, Fluid Trap, Test Leads
Display
Multiline LCD
Standards
IEC 61326-1
Interface
RS-232, USB, Wireless
Loop Supply Voltage
24 V DC
Powered By
(8) Alkaline AA Batteries
Current Measurement Range
0 to 24mA DC
Displayed Pressure Units
bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
RTD Temperature Range
-40 Degrees to 150 Degrees C
Source Current
4 to 20mA DC
Measurement Functions
mA DC, Pressure, Temperature, VDC
Voltage Measurement Range
0V DC to 30V DC
Pressure Source
Internal Electric Pump
Internally Generated Pressure Range
12 to 150 psi
Pressure Modules
700P Series (29 Ranges)
Calibration Certificate
NIST
Pressure Range with External Modules
-15 psi to 10,000 psi
Internal Pressure Range Accuracy
+/-0.035% of Full Scale
Internal Pressure Measurement Range
-12 to 150 psi
Current Measurement - Maximum
24 mA
IP Rating
IP40
Source Current - Minimum
0 mA
Parameters Measured
DC Current, Pressure, RTD
Includes Batteries
Batteries Included
Pressure Measuring Units
bar, psi
Voltage Measurement - Minimum
0 V DC
Current Measurement - Minimum
0 mA
Battery Chemistry
Alkaline
Intrinsic Safety
Not Specified Intrinsically Safe
Pressure Measurement - Maximum
150 psi
Digital Display Screen Type
LCD with Backlight
Number of Batteries Required
8
Parameters Sourced
DC Current, Pressure, RTD
RTD Temperature - Minimum
-50 Degrees F
Voltage Measurement - Maximum
30 V DC
Source Current - Maximum
24 mA
Pressure Measurement Accuracy
+/-0.025%
Pressure Measurement - Minimum
-12 psi
Communication Protocol
HART
Calibration Certificate Type
Traceable with data
RTD Temperature - Maximum
302 Degrees F

Description

Handheld Pressure Calibrator, Internal Electric Pump Pressure Source, Measurement Functions mA DC, Pressure, Temperature, VDC, Internal Pressure Measurement Range -12 to 150 psi, Internally Generated Pressure Range 12 to 150 psi, Pressure Range with External Modules -15 psi to 10,000 psi, Loop Supply Voltage 24 V DC, Current Measurement Range 0 to 24mA DC, Source Current 4 to 20mA DC, Voltage Measurement Range 0 to 30V DC, RTD Temperature Range -40 Degrees to 150 Degrees C, Display Multiline LCD
