Shop FLUKE

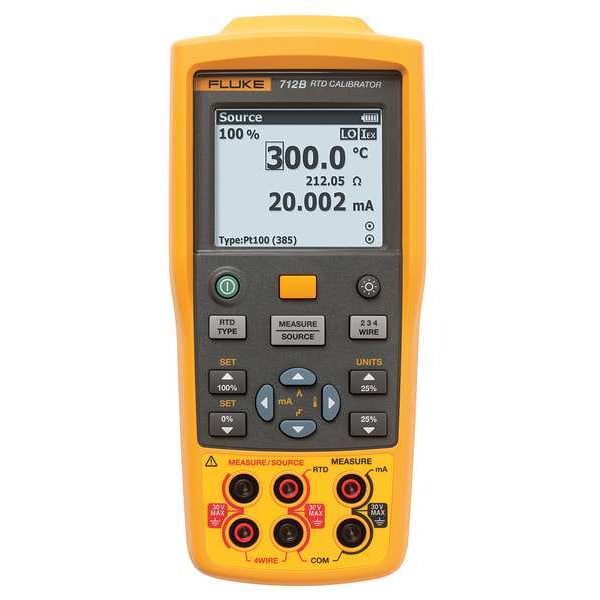

Temperature Calibrator, RTD, NIST

  • Mfr # FLUKE-712B

  • Zoro # G7556814

product price:
$
2,154.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes
Alligator Clips, Batteries, Magnetic Hanging Tool, Manual, Quick Reference Guide, Test Leads
Display
Backlit LCD
Accuracy
Dependent on RTD Type
RTD Type
Pt 10 (385), Pt 50 (385), Pt 100 (385), Pt 200 (385), Pt 200 (385), Pt 1000 (385), Pt 100 (3916), Pt 100 (3926), Cu 10 (427), Ni 120 (672), Cu 50 (427), Cu 100 (427) and YSI400
Powered By
(4) AA Alkaline Batteries
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FLUKE-712B
Zoro #
G7556814
UPC #
095969686402
Country of Origin
China
Item
Handheld Temperature Calibrator
Includes
Alligator Clips, Batteries, Magnetic Hanging Tool, Manual, Quick Reference Guide, Test Leads
Display
Backlit LCD
Accuracy
Dependent on RTD Type
RTD Type
Pt 10 (385), Pt 50 (385), Pt 100 (385), Pt 200 (385), Pt 200 (385), Pt 1000 (385), Pt 100 (3916), Pt 100 (3926), Cu 10 (427), Ni 120 (672), Cu 50 (427), Cu 100 (427) and YSI400
Powered By
(4) AA Alkaline Batteries
Current Measurement Range
0 to 24mADC
RTD Temperature Range
-200 Degrees to 800 Degrees C (Dependent on RTD Type)
FM Approved
No
Source/Simulate
T, Ohms, mA
Calibration Certificate
NIST Traceable
Measurement Functions
Current, Resistance, Temperature
Resistance Measurements
1 to 4000 Ohms
Agency Compliance
CE, CSA, TUV, RCM
Resistance Source
1 to 4000 ohm
Thermocouple Type
J, K, T, C, E, N, R and S
Display Type
LCD
Accuracy - Source
0.015% +0.1 ohm
Number of Digits
5
Includes NIST-Traceable Certificate
Yes
Resistance Accuracy
0.025% +0.1% to 0.55%
Temperature Range
-200 Degrees to 800 Degrees C
For RTD Type
Cu 10 (427), Cu 100 (427), Cu 50 (427), Ni 120 (672), Pt 10 (385), Pt 100 (385), Pt 100 (3916), Pt 100 (3926), Pt 1000 (385), Pt 200 (385), Pt 50 (385), YSI400
Resistance Range
1 to 4,000 ohm
Calibration Details
+/-0.002% of Reading +0.002% of Range / Degrees C ( 28 Degrees C)
Data Hold
No
Sensor Type
RTD
Auto Power Off
Yes
Accuracy - Measure
0.010% +2 uA
RTD Temperature Range C
-200 Degrees to 800 Degrees C
Temperature Measurement Accuracy
0.010% +2 uA
Resistance - Minimum
1 ohm
RTD Temperature Fahrenheit - Minimum
-328 Degrees F
Probe Connection Ports
Alligator Clip, Banana Plug, Bare Wire, Mini Plug
RTD Temperature Celsius - Minimum
-200 Degrees C
RTD Temperature Celsius - Maximum
800 Degrees C
Sensor Technology
RTD
Millivolt Accuracy
ange: -10.00 mV to 75.00 mV; Accuracy: +/-0.025% of reading
RTD Temperature Fahrenheit - Maximum
1,472 Degrees F
Temperature Source Accuracy
0.015% +0.1 ohm
Resistance - Maximum
4,000 ohm
Includes Data Logging
No Data Logging Included
Parameters Measured
Current, Resistance, Temperature

Description

Handheld Temperature Calibrator, Sensor Type RTD, +/-0.002 Percent of Reading +0.002 Percent of Range / Degrees C ( 28 Degrees C), -200 Degrees to 800 Degrees C
