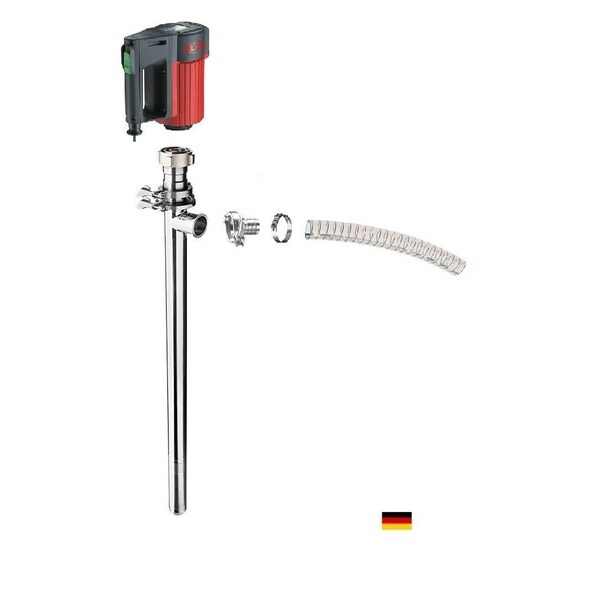

Drum Pump Tube, Stainless Steel, 47in Long, Motor 120V, 60Hz, 1ph 800 Watts Power
Mfr # 24-ZORO0315
Zoro # G811628568
product price:Â $7,735.99
/ea
Additional $125.00 delivery surcharge applies per item.
Key Features
For Use With
Chemical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor, Hose
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Outlet Size
2 inch tri clamp with adapter to 1.5 inch hose barb
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
24-ZORO0315
Zoro #
G811628568
UPC #
-
Country of Origin
Germany
Dimensions
Outlet Size
2 inch tri clamp with adapter to 1.5 inch hose barb
Power Cord Length (Ft.)
16 ft long with plug
Hose Length
47 inch (1000 mm)
Outside Diameter
2.01 inch (53 mm)
For Container Size
Totes / IBC tanks or smaller
Details
For Use With
Chemical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor, Hose
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Motor Enclosure
Polypropylene
Max. Flow GPM
12 gpm
Amps
7.5
Max. Pressure
116 psi
Motor Power
800 Watts
Material
316 S.S.
Weight
29 Lbs
Description
F570-1200-FKMo-FKM-SP-TS-R52-PTFE-G16, 47in pump tube with F457 motor 120V, 60Hz, 1ph, 800 Watts power, 9 ft PVC hose, hose clip. For high viscosity applications. For industrial applications. Not for sanitary / food applications. FLUX F570-1200-FKMo-FKM-SP-TS-R52-PTFE-G16, 47in drum pump in S.S./FKM constructionm for use in totes/IBCs or smaller containers Includes F457 motor 120V, 60Hz, 1ph, 800 Watts power, adapter for pump discharge from 2 inch tri clamp to 1.5 inch hose barb, 6 ft PVC hose, hose clip. Details: 1200 mm 47in tube length for use in totes/IBCs or smaller containers, 53 mm 2.1in tube OD, progressive cavity pump, mechanical seal, PTFE stator, Max flow: 12 GPM*, Max pressure: 116 psi*, Viscosity 500 - 30,000 cPs Max, Temp range: 32 Degrees F - 212 Degrees F. Max temp 150 Degrees F when used with PVC hose.. *As tested with water at 68 Degrees F at pump outlet with full, open discharge +/- 10%; Max pressure measured with closed outlet. Performance will vary based on type of liquids or products being transferred., Hose. For High Viscosity Products
