Shop FOOT MASTER

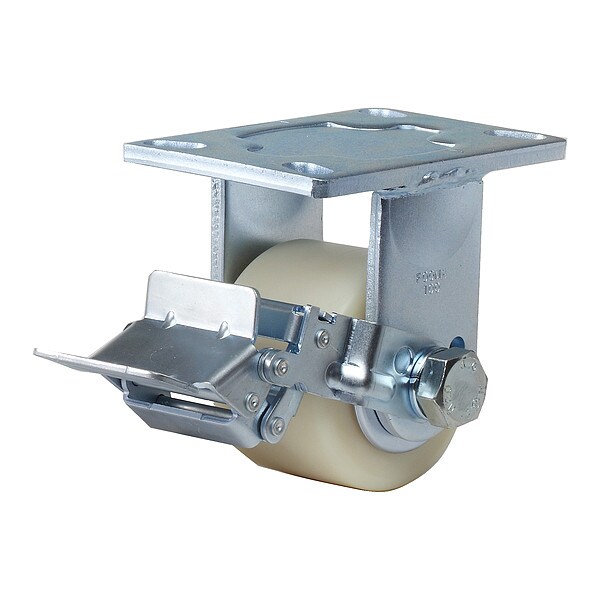

Plate Caster, Rigid, Polyurethane, 145mm H

  • Mfr # GF-100B-RF-MCD

  • Zoro # G811745128

product price:
$
134.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel Width
67 mm
Caster Frame Material
Steel
Mounting Bolt Dia.
13 mm
Inside Bolt Hole Spacing
5.27 in x 3.38 in or 4.96 in x 2.44 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GF-100B-RF-MCD
Zoro #
G811745128
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Wheel Width
67 mm
Mounting Bolt Dia.
13 mm
Wheel Dia.
100 mm
Mounting Height
145 mm
Mounting Plate Size
6.25 in x 4.48 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Caster Frame Material
Steel
Inside Bolt Hole Spacing
5.27 in x 3.38 in or 4.96 in x 2.44 in
Standards
RoHS Compliant
System of Measurement
Metric
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Features
Bolted Wheel Axle Structure
Number of Wheels
1
Caster Mounting Type
Plate
Load Rating
1,764 lb
Caster Brake Type
Rigid With Brake
Includes
Brake
Wheel Bearing Type
Ball
Brake Location
Face
Operating Temperature Range
14 Degrees to 194 Degrees F
Wheel Core Material
Aluminum
Wheel/Tread Material
Polyurethane
Swivel Lock Type
No Lock Included
Frame Construction
Welded
Load Capacity - Maximum
1,764 lb
Wheel Hardness Rating
80 Shore D

Description

Rigid, Plate Caster, Load Rating 1,764 lb, Swivel Lock Type No Lock Included, Wheel Dia. 100 mm, Wheel Width 67 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Number of Wheels 1, Caster Brake Type Rigid With Brake
