Foot Master Plate Caster, Swivel, Polyurethane, 115mm H GDS-65-BSF-EUS - main

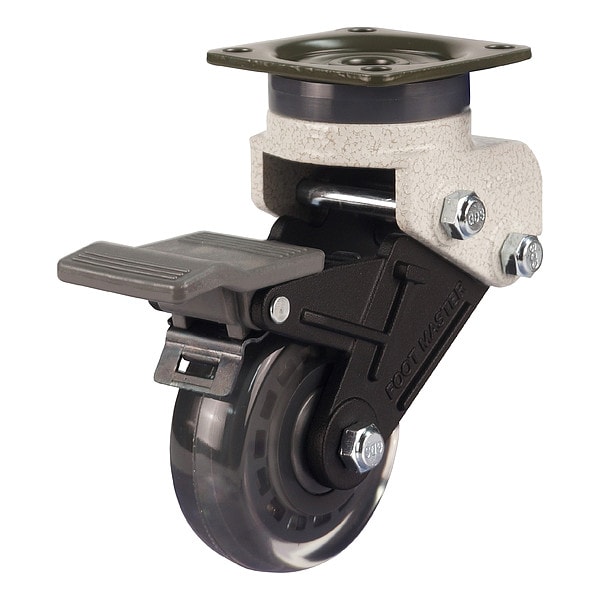

Plate Caster, Swivel, Polyurethane, 115mm H

  • Mfr # GDS-65-BSF-EUS

  • Zoro # G311745260

product price:  $61.69
/ea

Key Features

Includes
Brake
Number of Mounting Holes
4
Caster Frame Material
Aluminum
Standards
RoHS Compliant
Wheel Dia.
64 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GDS-65-BSF-EUS
Zoro #
G311745260
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Wheel Dia.
64 mm
Mounting Bolt Dia.
6 1/2 mm
Mounting Height
115 mm
Wheel Width
23 mm
Mounting Plate Size
2.17 in x 2.17 in

Details

Includes
Brake
Number of Mounting Holes
4
Caster Frame Material
Aluminum
Standards
RoHS Compliant
Inside Bolt Hole Spacing
1.65 in x 1.65 in
Wheel/Tread Hardness Rating
Soft
Features
Fine Shock Absorption Function With Special Rubber (A65), Special Wheel Axle for Reinforce of Smooth Rolling
Item
Plate Caster
Caster Sub-Type
Swivel
Caster Brake Type
Swivel With Brake
Load Rating
110 lb
Caster Mounting Type
Plate
Number of Wheels
1
Wheel Core Material
Polyolefin
Wheel/Tread Material
Polyurethane
Brake Location
Face
Swivel Raceway Type
Double Ball
Operating Temperature Range
14 Degrees to 194 Degrees F
Frame Color
Off-White
Wheel Bearing Type
Ball
Load Capacity - Maximum
110 lb
Wheel Hardness Rating
80 Shore A
Caster Features
Shock-Absorbing

Description

Swivel, Plate Caster, Load Rating 110 lb, Wheel Dia. 64 mm, Wheel Width 23 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Number of Wheels 1, Caster Brake Type Swivel With Brake
