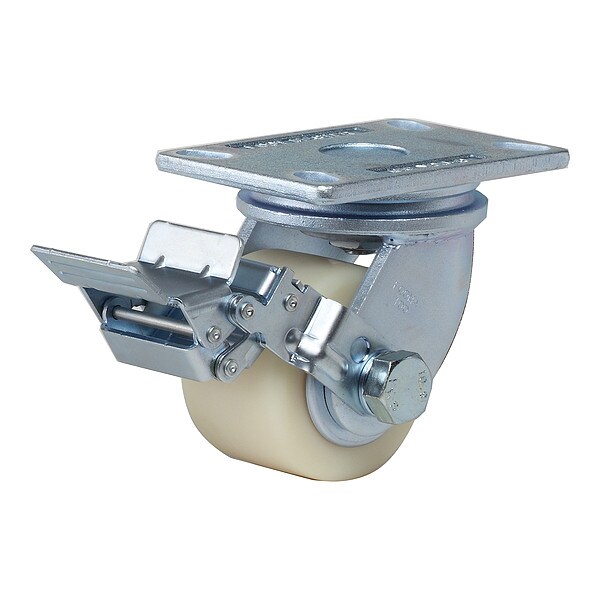

Plate Caster, Swivel, Polyurethane, 145mm H

  • Mfr # GF-100B-SF-MCD

  • Zoro # G911745165

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
Swivel With Brake
Mounting Height
145 mm
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
GF-100B-SF-MCD
Zoro #
G911745165
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Mounting Height
145 mm
Mounting Plate Size
6.25 in x 4.48 in
Mounting Bolt Dia.
13 mm
Wheel Dia.
100 mm
Wheel Width
67 mm

Details

Item
Plate Caster
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
Swivel With Brake
Caster Mounting Type
Plate
Wheel Hardness Rating
80 Shore D
Caster Frame Material
Steel
Number of Wheels
1
Inside Bolt Hole Spacing
5.27 in x 3.38 in or 4.96 in x 2.44 in
Features
Bolted Wheel Axle Structure
Standards
RoHS Compliant
Includes
Brake
Number of Mounting Holes
4
Caster Sub-Type
Swivel
Wheel/Tread Hardness Rating
Soft
Load Rating
1,764 lb
Wheel Core Material
Aluminum
Wheel Bearing Type
Ball
Frame Construction
Welded
Operating Temperature Range
14 Degrees to 194 Degrees F
Swivel Raceway Type
Double Ball
Brake Location
Face
Load Capacity - Maximum
1,764 lb

Description

Swivel, Plate Caster, Load Rating 1,764 lb, Wheel Dia. 100 mm, Wheel Width 67 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Number of Wheels 1, Caster Brake Type Swivel With Brake
