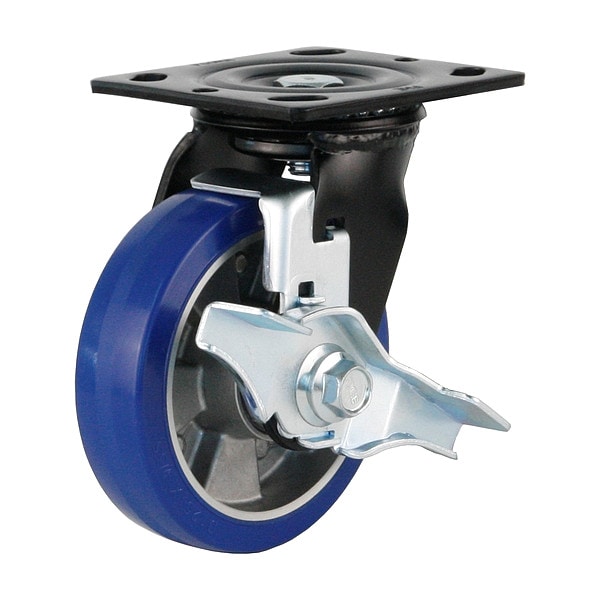

Plate Caster, Swivel, Polyurethane, 160mm H

  • Mfr # PME-125-BSF-MUD

  • Zoro # G111745286


product price:  $39.89
/ea

Key Features

Includes
Brake
Mounting Bolt Dia.
11 mm
Features
Bolted Wheel Axle Structure
Wheel Width
35 mm
Mounting Height
160 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PME-125-BSF-MUD
Zoro #
G111745286
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Mounting Bolt Dia.
11 mm
Wheel Width
35 mm
Mounting Height
160 mm
Wheel Dia.
125 mm
Mounting Plate Size
4.52 in x 4.01 in

Details

Includes
Brake
Features
Bolted Wheel Axle Structure
Standards
RoHS Compliant
Wheel/Tread Hardness Rating
Firm
Item
Plate Caster
Caster Frame Material
Steel
Caster Brake Type
Swivel With Brake
Inside Bolt Hole Spacing
3.62 in x 2.59 in or 2.99 in x 2.99 in
Number of Mounting Holes
4
Caster Sub-Type
Swivel
Caster Mounting Type
Plate
Number of Wheels
1
Load Rating
551 lb
System of Measurement
Metric
Wheel Bearing Type
Ball
Brake Location
Face
Wheel/Tread Material
Polyurethane
Operating Temperature Range
14 Degrees to 194 Degrees F
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Frame Construction
Welded
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
551 lb

Description

Swivel, Plate Caster, Load Rating 551 lb, Wheel Dia. 125 mm, Wheel Width 35 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Number of Wheels 1, Caster Brake Type Swivel With Brake
