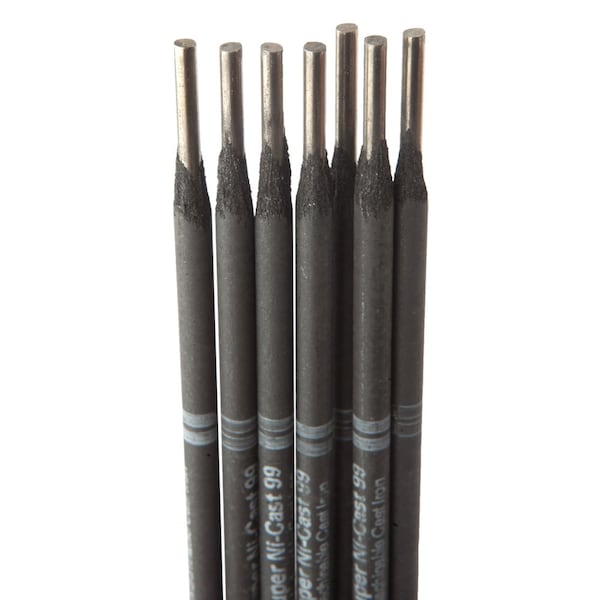

E Ni-CI, Cast Iron 99 Electrode, 1/8 in x 1/2 Pound

Super Ni-Cast 99% nickel special welding electrodes feature a non-conductive coating that is ideally suited for welding all grades of gray cast-iron - particularly thin sections and welds requiring the highest possible machinability. Typical applications include automotive engine blocks, transmission and pump housings. PRODUCT SPECIFICATIONS* Hardness: Rockwell B 82-84, Brinell 155, Vickers 14 * Recommended Polarity: DC Reverse + or AC * Diameter: 1/8in * Length: 14in * Weight Lbs. Kg: .5 .22 * Tensile Strength: 55,000 PSI 380 MPa * Yield Strength: 38,000 PSI 270 MPa * Amperage: 70-90 WELDING POSITIONS* Flat, vertical up, vertical down, horizontal and overhead WELDING TECHNIQUES* Maintain a close arc gap and move rapidly in the direction of travel. Slag can be welded over without removal.
