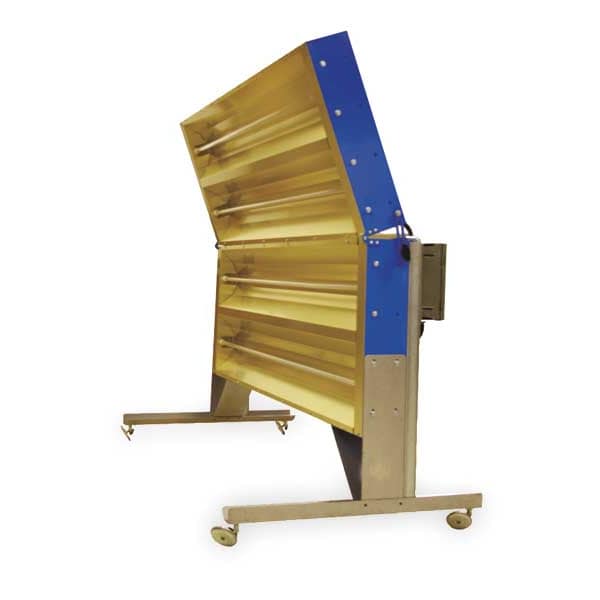

Fostoria Electric Infrared Heater, 1 or 3 Phase, Steel, 16,382 BtuH, 240V AC 4800 W HP-5-QT - main

Electric Infrared Heater, 1 or 3 Phase, Steel, 16,382 BtuH, 240V AC 4800 W

  • Mfr # HP-5-QT

  • Zoro # G2303734

product price:  $3,047.04
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Watts
4800
Voltage
240V AC
Phase
1 or 3
Height
56-1/2"
Width
44-5/8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HP-5-QT
Zoro #
G2303734
UPC #
-
Country of Origin
United States

Dimensions

Height
56-1/2"
Width
44-5/8"
Length
(5" on Panel) 30"
Cord Length
20 ft
Overall Width
44 5/8 in
Overall Depth
56 1/2 in
Overall Dimensions - L x W x D
30 in x 44-5/8 in x 56-1/2 in
Overall Height
30 in

Details

Watts
4800
Voltage
240V AC
Phase
1 or 3
Housing Material
Steel
Element Type
Quartz Lamp
Item
Electric Infrared Heater
BtuH Output
16,382
Number of Lamps
4
Heater Voltage
240VAC
Electric Heater Phase
1/3
Finish
Blue Painted Enamel
Electric Heater Item
Electric Infrared Panel Heater
Heater Mounting Type
Carted Unit
Cord Type
SO, 14-3
Indoor/Outdoor Usage
Indoor Only
Includes
Fused Disconnect Switches, Quartz Tubes, Steel Casters
Amps @ 1 Phase
20.00
Amps @ 3 Phase
11.52
Beam Pattern
180 Degrees
Radiant Efficiency
60 %
Infrared Electromagnetic Wave Type
Medium Wave
Reflector Material
Aluminum, Gold Anodized
Mobility
Wheeled
NEMA Plug Configuration
Hardwired
Heating Method
Radiant
Housing Finish
Powder Coated
Wattage Output
4800W
Control Type
Disconnect Switch
Cord Construction
12/3
Electrical Connection
Hardwired
Heating Capacity
16,382 BtuH
Amperage
20A
Voltage, Phase
240V AC, 1 or 3-phase
UL Cord Rating
SO
For Use Outdoors
Indoor Only
Brightness
48 lm
Heater Mounting Position
Horizontal Burn
Housing Material, Housing Color
Blue, Steel
Housing Color
Blue
Frequency
50/60Hz
Max. Operating Temp.
Varies, based on distance from target & mounting height
For Use Indoors/Outdoors
Indoor Only

Description

Electric Infrared Heater, Overall Height 30 in, Overall Width 44 5/8 in, Overall Depth 56 1/2 in, Phase 1 or 3, Voltage 240V AC, Wattage Output 4800W, Beam Pattern 180 Degrees , Element Type Quartz Lamp, Housing Color Blue, Housing Material Steel, Mounting Type Portable, Heating Capacity 16,382 BtuH, Heating Method Radiant, Housing Finish Powder Coated, Control Type Disconnect Switch, Cord Construction 12/3, Electrical Connection Hardwired, Frequency 50/60Hz, Amperage 20A
