Shop FOSTORIA

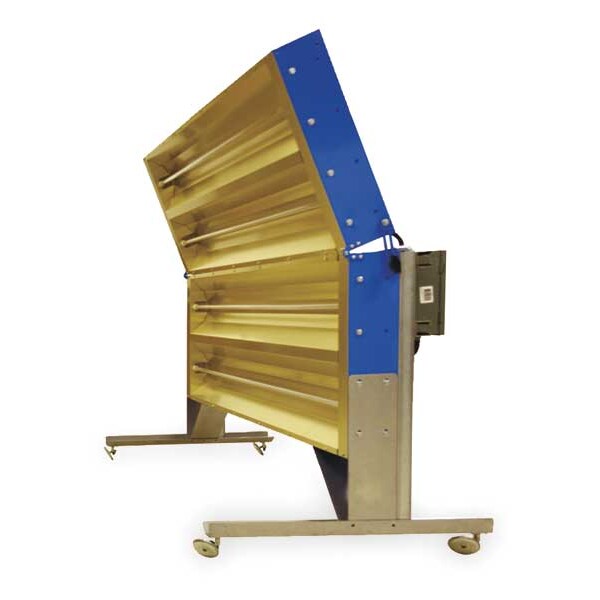

Electric Infrared Heater, 1 or 3 Phase, Steel, 21,843 BtuH, 240V AC 6400 W

  • Mfr # HP-6-QT

  • Zoro # G3460423

product price:  $3,591.99
/ea
Additional $340.00 delivery surcharge applies per item.
See details

Key Features

Watts
6400
Voltage
240V AC
Phase
1, 3
Height
61"
Width
44"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HP-6-QT
Zoro #
G3460423
UPC #
-
Country of Origin
United States

Dimensions

Height
61"
Width
44"
Cord Length
20 ft
Length
(5" on Panel) 30"
Overall Dimensions - L x W x D
30 in x 66-5/8 in x 56-1/2 in
Overall Height
56 1/2 in
Overall Depth
44 in
Overall Width
66 5/8 in
Overall Length
44 in
Wire Rope Length
44 in

Details

Watts
6400
Voltage
240V AC
Phase
1, 3
Housing Material
Steel
Element Type
Quartz Tube
Item
Infrared Heater
Electric Heater Item
Electric Infrared Panel Heater
Electric Heater Phase
1/3
Cord Type
SO, 12-3
Indoor/Outdoor Usage
Indoor Only
Heater Voltage
240VAC
Includes
4-Steel Casters, Fused Disconnect Switches
BtuH Output
21,843
Amps @ 1 Phase
26.7 A
Finish
Blue Painted Enamel
Amps @ 3 Phase
15.36 A
Heater Mounting Type
Carted Unit
Number of Lamps
4 A
Radiant Efficiency
60 %
Beam Pattern
180 Degrees
Infrared Electromagnetic Wave Type
Medium Wave
Cord Construction
12/3
Heating Method
Radiant
Max. Operating Temp.
Varies, based on distance from target & mounting height
Reflector Material
Aluminum, Gold Anodized
UL Cord Rating
SO
For Use Outdoors
Indoor Only
Electrical Connection
Hardwired
Housing Material, Housing Color
Blue, Steel
Frequency
50/60 Hz
Heater Mounting Position
Horizontal Burn
Housing Color
Blue
Voltage, Phase
240V AC, 1 or 3-phase
Heating Capacity
21.843 BtuH
Wattage Output
6,400 W
Brightness
64 lm
NEMA Plug Configuration
Hardwired
Amperage
26.7 A
Mobility
Wheeled
Housing Finish
Powder Coated
Control Type
Disconnect Switch
For Use Indoors/Outdoors
Indoor
Compatible Product Type
Process Heating, Structural Drying
Product Type
Portable Electric Infrared Heater
Number of Heat Settings
1
Color
Gold; Blue
Number of Settings
1
Thermal Overheat Protection
None
Portability
Wheeled
Number of Speeds
Varies, based on distance from target & mounting height
Heating Capacity - Maximum
21,843 BtuH

Description

Infrared Heater, Non-Oscillating, Overall Height 56 1/2 in, Overall Width 66 5/8 in, Overall Depth 44 in, Number of Heat Settings 1, Key Features Adjustable hinges allowing for direction bank heating positioning, Safety Tip-Over Switch Included No, Thermal Overheat Protection None, Control Type Disconnect Switch, Heating Method Infrared, Wattage Output 6,400 W, Housing Color Blue, NEMA Plug Configuration Hardwired, Mounting Type Mobile, Wheel-Based, Mounting Location Cart, Floor, 1, 3 Phase
