Fostoria Electric Infrared Heater, 1 or 3 Phase, Steel, 38,226 BtuH, 240V AC 11,200 W HP-11-QT - main
Shop FOSTORIA

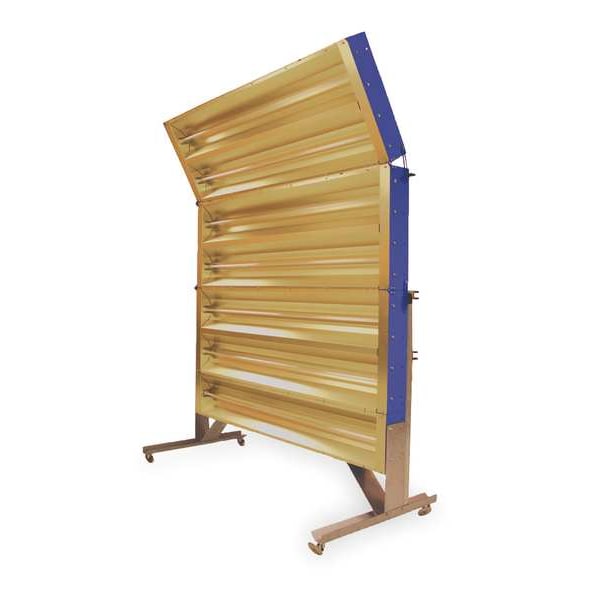

Electric Infrared Heater, 1 or 3 Phase, Steel, 38,226 BtuH, 240V AC 11,200 W

  • Mfr # HP-11-QT

  • Zoro # G0287061

product price:  $6,483.20
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Watts
11,200
Voltage
240V AC
Phase
1, 3
Height
61"
Width
77"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HP-11-QT
Zoro #
G0287061
UPC #
686334884143
Country of Origin
United States

Dimensions

Height
61"
Width
77"
Cord Length
20 ft
Length
(5" on Panel) 30"
Overall Width
66 5/8 in
Overall Height
30 in
Overall Dimensions - L x W x D
30 in x 66-5/8 in x 89-1/2 in
Overall Depth
89 1/2 in

Details

Watts
11,200
Voltage
240V AC
Phase
1, 3
Housing Material
Steel
Element Type
Quartz Lamp
Item
Electric Infrared Heater
Electric Heater Item
Electric Infrared Panel Heater
Electric Heater Phase
1/3
Number of Lamps
7
Heater Mounting Type
Carted Unit
Finish
Blue Painted Enamel
BtuH Output
38,226
Heater Voltage
240VAC
Indoor/Outdoor Usage
Indoor Only
Cord Type
SO, 6-3
Amps @ 1 Phase
46.70
Amps @ 3 Phase
26.88
Includes
Fused Disconnect Switches, Steel Casters
Infrared Electromagnetic Wave Type
Medium Wave
Beam Pattern
180 Degrees
Radiant Efficiency
60 %
Heater Mounting Position
Horizontal Burn
Heating Capacity
38,226 BtuH
Control Type
Disconnect Switch
Cord Construction
6/3
Frequency
50/60 Hz
Brightness
112 lm
Housing Material, Housing Color
Blue, Steel
Electrical Connection
Hardwired
Voltage, Phase
240V AC, 1 or 3-phase
Reflector Material
Aluminum, Gold Anodized
Housing Finish
Powder Coated
Amperage
46.7A
UL Cord Rating
SO
Wattage Output
11,200 W
Max. Operating Temp.
Varies, based on distance from target & mounting height
Heating Method
Radiant
Mobility
Wheeled
Housing Color
Blue
NEMA Plug Configuration
Hardwired
For Use Outdoors
Indoor Only
For Use Indoors/Outdoors
Indoor
Product Type
Portable Electric Infrared Heater
Heating Capacity - Maximum
38,226 BtuH
Portability
Wheeled
Number of Speeds
Varies, based on distance from target & mounting height

Description

Electric Infrared Heater, Overall Height 30 in, Overall Width 66 5/8 in, Overall Depth 89 1/2 in, Control Type Disconnect Switch, Heating Method Infrared, Wattage Output 11,200 W, Housing Color Blue, NEMA Plug Configuration Hardwired, Mounting Type Mobile, Mounting Location Cart, 1, 3 Phase, Voltage 240V AC, Amperage 46.7A, Cord Length 20 ft, For Use Indoors/Outdoors Indoor, Frequency 50/60 Hz, Heating Capacity 38,226 BtuH, Housing Finish Powder Coated, Housing Material Steel
