Shop FOSTORIA

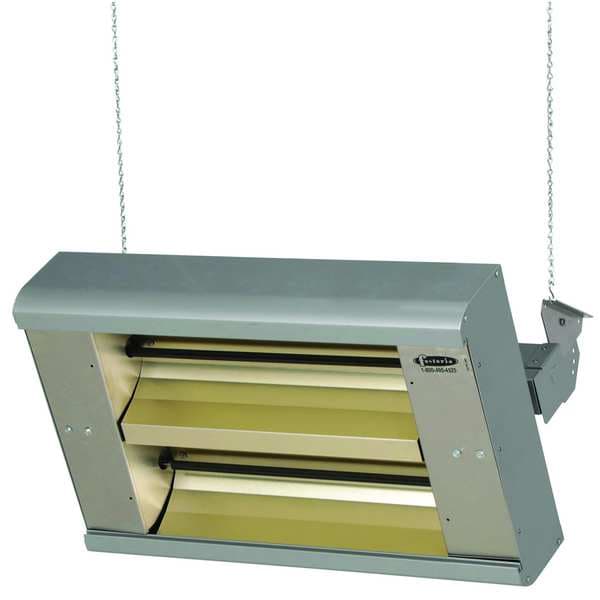

Electric Infrared Heater, 1 Phase, Aluminum, 480V AC

  • Mfr # 222-30-THA-480V

  • Zoro # G5520086

product price:  $984.99
/ea
Free Shipping & Returns

Key Features

Voltage
480V AC
Phase
1
Housing Material
Aluminum
Element Type
Quartz Lamp
Infrared Electromagnetic Wave Type
Short Wave
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
222-30-THA-480V
Zoro #
G5520086
UPC #
686334489256
Country of Origin
United States

Dimensions

Overall Depth
11 in
Overall Width
15 in
Grille Depth
1/8 in
Grille Width
12 1/4 in
Grille Height
16 1/2 in
Overall Dimensions - L x W x D
24 in x 15 in x 11 in
Overall Length
24 in
Overall Height
11 in

Details

Voltage
480V AC
Phase
1
Housing Material
Aluminum
Element Type
Quartz Lamp
Item
Infrared Heater
Infrared Electromagnetic Wave Type
Short Wave
Includes
(4) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard
Beam Pattern
30 Degrees
Number of Lamps
2
Radiant Efficiency
96 %
Standards
ETL Listed for US & Canada
For Use Outdoors
Indoor/Outdoor
Housing Material, Housing Color
Aluminum, Silver
Heater Mounting Position
Horizontal Burn
Housing Finish
Powder Coated
Housing Color
Silver
Frequency
50/60 Hz
Reflector Material
Aluminum, Gold Anodized
Amperage
6.7 A
NEMA Plug Configuration
Hardwired
Grille Material
Stainless Steel
Wattage Output
3200W
Brightness
25,600 lm
Max. Operating Temp.
Varies, based on distance from target & mounting height
Mobility
Stationary
Heating Method
Radiant
Heating Capacity
10,922 BTU
Electrical Connection
Hardwired
Voltage, Phase
480V AC, 1-phase
For Use Indoors/Outdoors
Indoor/Outdoor
For Location
Indoor/Outdoor
Control Type
None
Duty Rating
Commercial Grade
Operating Temperature - Maximum
Varies, based on distance from target & mounting height
Thermostat Included
Thermostat Not Included
Housing Style
Slope
Programming Capability
Non-Programmable

Description

Electric Infrared Heater, Overall Length 24 in, Overall Width 15 in, Overall Depth 11 in, Phase 1, Voltage 480V AC, Wattage Output 3200W, Beam Pattern 30 Degrees , Element Type Quartz Lamp, Housing Color Silver, Housing Material Aluminum, Mounting Type Recessed, Surface, Suspended, Grille Depth 1/8 in, Grille Height 16 1/2 in, Grille Width 12 1/4 in, Grille Material Stainless Steel, Heating Capacity 10,922 BtuH, Heating Method Radiant, Housing Finish Nickel-Gray, Electrical Connection Hardwired
