  11. Wired Thermostat, White, 7-9/16 in W

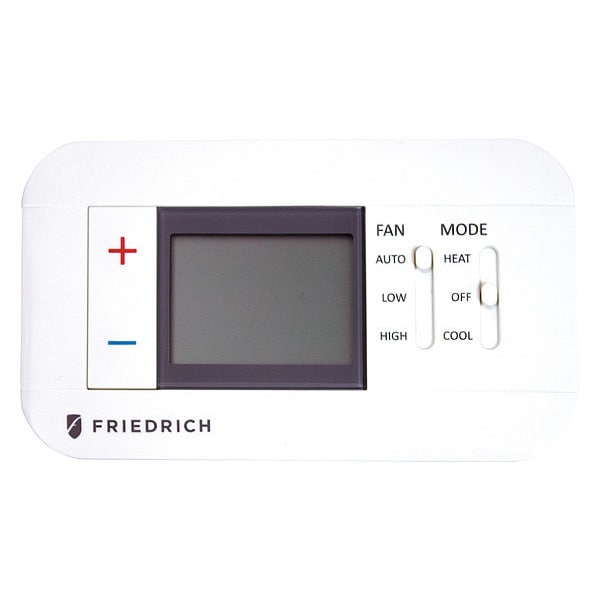

Friedrich Wired Thermostat, White, 7-9/16 in W RT7 - main

Wired Thermostat, White, 7-9/16 in W

  • Mfr # RT7

  • Zoro # G3956450

product price: $118.99
/ea
Free Shipping & Returns

Key Features

Color
White
Material
Plastic
Width
7 9/16 in
For Use With
Friedrich PTAC
Includes
Mounting Kit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RT7
Zoro #
G3956450
UPC #
724587438857
Country of Origin
China

Dimensions

Width
7 9/16 in
Depth
2 1/8 in
Height
5 11/16 in
Overall Depth
2 1/8 in
Overall Width
7 9/16 in
Overall Height
5 11/16 in

Details

Item
Wired Thermostat
Color
White
Material
Plastic
For Use With
Friedrich PTAC
Includes
Mounting Kit
Requires
Installed Friedrich PTAC/VPAK
Voltage
24V DC
Standards
FCC
Number of Cooling Stages - Heat Pump System
1
Compatible System Type
Friedrich PTAC and VPAK
Contact Rating
19 to 30V AC
Thermostat Control Type
Push Button
Number of Heating Stages - Conventional System
1
Programming Capability
Not Programmable
Number of Poles
1
Maximum Control Temperature
90 Degrees F
Housing Color
White
Minimum Control Temperature
45 Degrees F
Number of Heating Stages - Heat Pump System
1
Compatible Manufacturer Model Number
PDE07K3SGR3, PDE07R3SGR3, PDE09K3SGR3, PDE09R3SGR3, PDE12K3SGR3, PDE12R3SGR3, PDE15K5SGR3, PDE15R5SGR3, PDH07K3SGR3, PDH07R3SGR3, PDH09K3SGR3, PDH09R3SGR3, PDH12K3SGR3, PDH12R3SGR3, PDH15K5SGR3, PVH09K3FC, PVH12K3FC, PZH07K3SC, PZH09R3SC, VHA09K34RCQ, VHA09R34RCQ, VHA12K34RCQ, VHA18K34RCQ, VHA18K50RCQ, VHA24K50RCQ, VHA24K75RCQ, VHA24R50RCQ, VHA24R75RCQ
Number of Cooling Stages - Conventional System
1

Description

Wired Thermostat, 24V DC, 2 1/8 in Overall Depth, 5 11/16 in Overall Height, 7 9/16 in Overall Width, Number of Cooling Stages - Conventional System 1, Number of Cooling Stages - Heat Pump System 1, Number of Heating Stages - Conventional System 1, Number of Heating Stages - Heat Pump System 1, Maximum Control Temperature 90 Degrees F, Minimum Control Temperature 45 Degrees F
