  5. CC LED PD, 96W, Univ, 700-2400mA

This item is Discontinued.

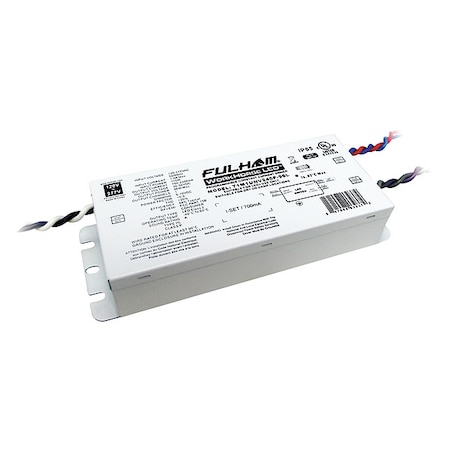

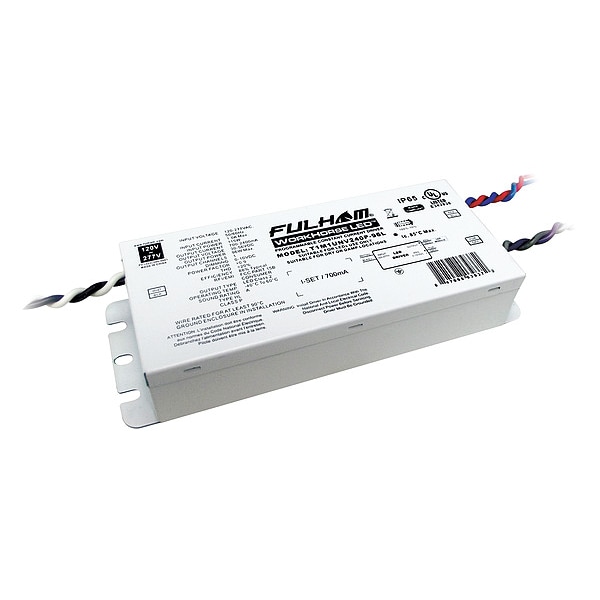

Fulham CC LED PD, 96W, Univ, 700-2400mA T1M1UNV240P-96L

CC LED PD, 96W, Univ, 700-2400mA (Discontinued)

  • Mfr # T1M1UNV240P-96L
  • Zoro # G1463240
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
T1M1UNV240P-96L
Zoro #
G1463240
UPC #
847098039372
Country of Origin
India

Dimensions

Length
6.69 in
Width
2.56 in
Height
1.26 in

Details

Item
LED Driver
Power Output
96W
Environmental Rating
Damp Location
For Use With
LED Lighting
Input Voltage
120 to 277V AC
Ballast Dimming
Yes
Ballast Dimming Type
0-10V
Output Voltage
30 to 56V DC
Input Power
115 W
Ambient Temp. Range
-40 Degrees to 140 Degrees F
Input Current
1AAC
Power Factor
Greater Than 0.9
Output Current
700 to 2400 mA
Case Form Factor
Long
Total Harmonic Distortion
20 %
Intended LED Usage
Fixture Array
Standards
UL Listed
Output Technology
Programmable
Max. Case Temp.
185 Degrees F
Dimming Type
Step Dimming
Dimming Range
100% to 0%
Brand and Series
WorkHorse
Driver Mounting Location
Universal
Dimming Method
0-10V
Ouput Constant
Constant Current
Profile
Standard Profile
Driver Class
Class 2
Dimming
Yes
Number of Bulbs Supported
6
Power Output - Minimum
21 W
Power Factor - Minimum
0.9
Max. Ambient Temp.
140 Degrees F
Power Output - Maximum
60 W
Input Current - Maximum
1 A
Min. Ambient Temp.
-40 Degrees F

Description

WorkHorse, LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported 6, 120 to 277V AC Input Voltage, 30 to 56V DC Output Voltage, 1AAC Input Current, 700 to 2400 mA Output Current, 115 W Input Power, 96W Power Output, 6 11/16 in Length, 2 9/16 in Width, 1 1/4 in Height, Case Form Factor Long, Standard Profile, Class 2
