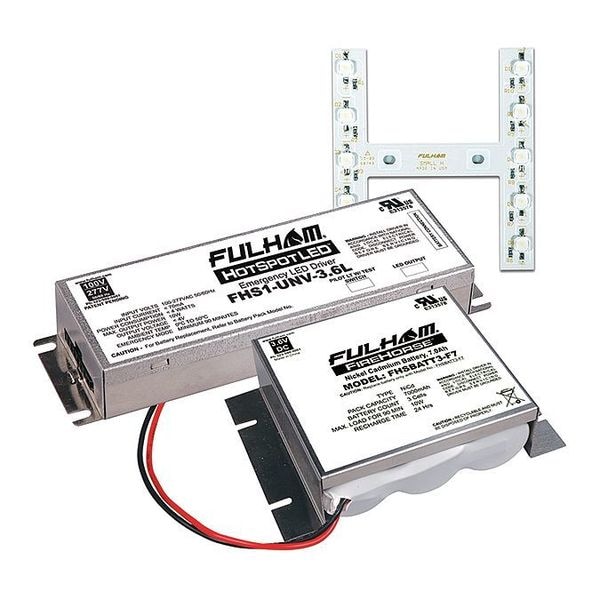

Fulham Lighting Retrofit Kit, 10" W x 5-13/32" FHSKITT10SHF - main

Lighting Retrofit Kit, 10" W x 5-13/32"

  • Mfr # FHSKITT10SHF

  • Zoro # G2044633

product price: $252.99
/ea
Free Shipping & Returns

Key Features

Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
Lamp Watts - Emergency Lighting and Exit Signs
10.0
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Initial Lumens - Emergency Lighting and Exit Signs
1250
Housing Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FHSKITT10SHF
Zoro #
G2044633
UPC #
847098002680
Country of Origin
China

Dimensions

Length - Emergency Lighting and Exit Signs
18-21/64"
Width
3 15/16 in
Height
5 7/16 in
Lamp Length Supported
47 3/4 in
Length
3 1/2 in
Overall Length
3 1/2 in
Overall Height
5 7/16 in
Bulb Length Supported
47 3/4 in
Overall Width
3 15/16 in

Details

Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
Lamp Watts - Emergency Lighting and Exit Signs
10.0
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Initial Lumens - Emergency Lighting and Exit Signs
1250
Housing Material
Steel
Voltage - Emergency Lighting and Exit Signs
120/277
Number of Lamps Supported
1
Battery Type
Nickel Cadmium
Item
LED Emergency Driver
Standards
UL Listed
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Input Voltage
120/277V AC
Emergency Illumination Time
2.3 hr
Includes
Battery Pack, LED Module
Initial Lumens
1250 lm
Wiring Connection
Wiring Attached
Ouput Constant
Constant Current
For Use With
Fluorescent, Incandescent, and LED Lighting
Meets Class 2 Electrical Wiring
Yes
Number of Bulbs Supported
1
Profile
Standard Profile
Max. Bulb Watts
4 W
Recharge Time
24 hr
Max. Case Temp.
122 Degrees F
Brand and Series
HotSpot1
Frequency
47 to 63Hz
Driver Mounting Location
Within Fixture
Driver Class
Class 2
Bulb Watts
4 W
Output Technology
Fixed
Operating Amps @ 120V
3.5
CA Title 20 Compliant
Yes
Intended LED Usage
LED Fixture Array
Case Form Factor
Compact
Total Harmonic Distortion
Less Than 10%
Diagnostic Testing Function
Self Diagnostics/Remote Test
Output Current
3.5 A
Self Diagnostics
Yes
Maximum Bulb Wattage
4 W
Bulb Wattage
4 W
Maximum Operating Temperature
122 Degrees F
Emergency LED Array Shape
H-Configuration
Input Current
0.07 A
Output Voltage
3.6 V
Initial Light Output
1,250 lm
Battery Capacity
7 Ah
Minimum Operating Temperature
0 Degrees C
Series
HotSpot1

Description

LED Emergency Driver, Bulb Type LED, Battery Type Nickel Cadmium, Battery Capacity 7 Ah, Bulb Wattage 4 W, 47 3/4 in Bulb Length Supported, Emergency Illumination Time 2.3 hr, Initial Light Output 1,250 lm, Driver Mounting Location Within Fixture, Emergency LED Array Shape H-Configuration, Housing Material Steel, Input Current 0.07 A, Input Voltage 120/277V AC, LED Fixture Array Intended LED Usage, 4 W Maximum Bulb Wattage, Number of Bulbs Supported 1, 122 Degrees F Maximum Operating Temperature
