  9. Lighting Retrofit Kit, 10" W x 5-13/32" H

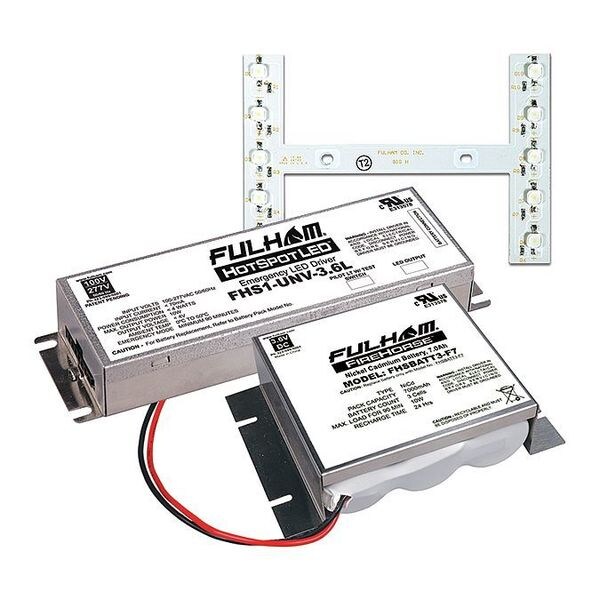

Fulham Lighting Retrofit Kit, 10" W x 5-13/32" H FHSKITT08LHF - main

Lighting Retrofit Kit, 10" W x 5-13/32" H

  • Mfr # FHSKITT08LHF

  • Zoro # G1803090

product price: $206.99
/ea
Sold in multiples of 20 for $4,139.80
Free Shipping & Returns

Key Features

Length
5 3/4 in
Width
3 15/16 in
Height
5 7/16 in
For Use With
Fluorescent, Incandescent, and LED Lighting
Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FHSKITT08LHF
Zoro #
G1803090
UPC #
813068014663
Country of Origin
China

Dimensions

Length
5 3/4 in
Width
3 15/16 in
Height
5 7/16 in
Length - Emergency Lighting and Exit Signs
21-1/2"
Lamp Length Supported
47 3/4 in
Overall Width
3 15/16 in
Bulb Length Supported
47 3/4 in
Overall Length
5 3/4 in
Overall Height
5 7/16 in

Details

Item
LED Emergency Driver
For Use With
Fluorescent, Incandescent, and LED Lighting
Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Standards
UL Listed
Lamp Watts - Emergency Lighting and Exit Signs
8.0
Voltage - Emergency Lighting and Exit Signs
120/277
Housing Material
Steel
Initial Lumens - Emergency Lighting and Exit Signs
1100 to 1400
Battery Type
Nickel Cadmium
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Number of Lamps Supported
1
Includes
Battery Pack, LED Module
Case Form Factor
Compact
Driver Class
Class 2
Profile
Standard Profile
Driver Mounting Location
Within Fixture
Frequency
47 to 63Hz
Emergency Illumination Time
2.9 hr
Recharge Time
24 hr
Output Technology
Fixed
Initial Lumens
1000 lm
Number of Bulbs Supported
1
Operating Amps @ 120V
3.5
Bulb Watts
4 W
Meets Class 2 Electrical Wiring
Yes
Input Voltage
120/277V AC
Wiring Connection
Wiring Attached
CA Title 20 Compliant
Yes
Brand and Series
HotSpot1
Total Harmonic Distortion
Less Than 10%
Max. Bulb Watts
4 W
Ouput Constant
Constant Current
Intended LED Usage
LED Fixture Array
Max. Case Temp.
122 Degrees F
Series
HotSpot1
Output Current
3.5 A
Maximum Operating Temperature
122 Degrees F
Diagnostic Testing Function
Self Diagnostics/Remote Test
Input Current
0.07 A
Battery Capacity
7 Ah
Self Diagnostics
Yes
Minimum Operating Temperature
0 Degrees C
Initial Light Output
1,000 lm
Maximum Bulb Wattage
4 W
Output Voltage
3.6 V
Bulb Wattage
4 W
Emergency LED Array Shape
H-Configuration

Description

LED Emergency Driver, Bulb Type LED, Battery Type Nickel Cadmium, Battery Capacity 7 Ah, Bulb Wattage 4 W, 47 3/4 in Bulb Length Supported, Emergency Illumination Time 2.9 hr, Initial Light Output 1,000 lm, Driver Mounting Location Within Fixture, Emergency LED Array Shape H-Configuration, Housing Material Steel, Input Current 0.07 A, Input Voltage 120/277V AC, LED Fixture Array Intended LED Usage, 4 W Maximum Bulb Wattage, Number of Bulbs Supported 1, 122 Degrees F Maximum Operating Temperature

Documents & Resources

Restrictions

WARNING: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
