  9. Lighting Retrofit Kit, 10" W x 5-13/32" H

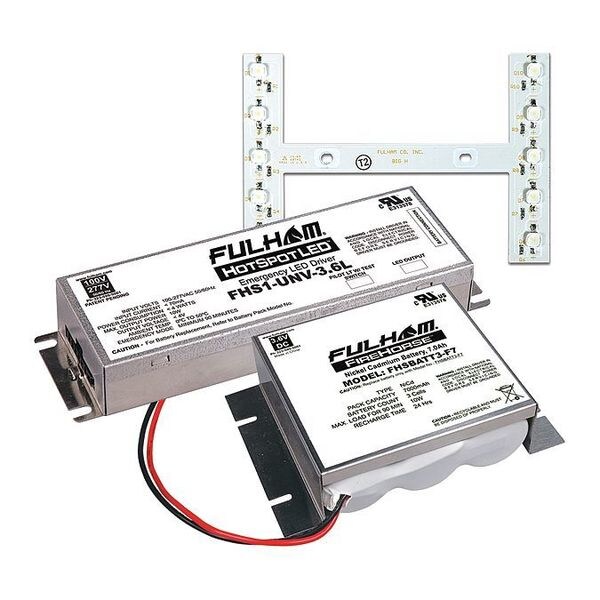

Fulham Lighting Retrofit Kit, 10" W x 5-13/32" H FHSKITT10LHF - main

Lighting Retrofit Kit, 10" W x 5-13/32" H

  • Mfr # FHSKITT10LHF

  • Zoro # G1803072

product price: $190.99
/ea
Sold in multiples of 20 for $3,819.80
Free Shipping & Returns

Key Features

Length
5 3/4 in
Width
3 15/16 in
Height
5 7/16 in
For Use With
Fluorescent, Incandescent, and LED Lighting
Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FHSKITT10LHF
Zoro #
G1803072
UPC #
813068014892
Country of Origin
China

Dimensions

Length
5 3/4 in
Width
3 15/16 in
Height
5 7/16 in
Length - Emergency Lighting and Exit Signs
21-1/2"
Lamp Length Supported
47 3/4 in
Overall Height
5 7/16 in
Bulb Length Supported
47 3/4 in
Overall Length
5 3/4 in
Overall Width
3 15/16 in

Details

Item
LED Emergency Driver
For Use With
Fluorescent, Incandescent, and LED Lighting
Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
Initial Lumens - Emergency Lighting and Exit Signs
1250
Number of Lamps Supported
1
Lamp Watts - Emergency Lighting and Exit Signs
10.0
Housing Material
Steel
Standards
UL Listed
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Voltage - Emergency Lighting and Exit Signs
120/277
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Battery Type
Nickel Cadmium
Includes
Battery Pack, LED Module
Input Voltage
120/277V AC
CA Title 20 Compliant
Yes
Driver Class
Class 2
Frequency
47 to 63Hz
Recharge Time
24 hr
Output Technology
Fixed
Driver Mounting Location
Within Fixture
Brand and Series
HotSpot1
Case Form Factor
Compact
Operating Amps @ 120V
3.5
Total Harmonic Distortion
Less Than 10%
Emergency Illumination Time
2.3 hr
Profile
Standard Profile
Max. Case Temp.
122 Degrees F
Meets Class 2 Electrical Wiring
Yes
Ouput Constant
Constant Current
Bulb Watts
4 W
Max. Bulb Watts
4 W
Wiring Connection
Wiring Attached
Initial Lumens
1250 lm
Intended LED Usage
LED Fixture Array
Number of Bulbs Supported
1
Series
HotSpot1
Minimum Operating Temperature
0 Degrees C
Maximum Operating Temperature
122 Degrees F
Battery Capacity
7 Ah
Self Diagnostics
Yes
Output Current
3.5 A
Diagnostic Testing Function
Self Diagnostics/Remote Test
Bulb Wattage
4 W
Emergency LED Array Shape
H-Configuration
Output Voltage
3.6 V
Maximum Bulb Wattage
4 W
Initial Light Output
1,250 lm
Input Current
0.07 A

Description

LED Emergency Driver, Bulb Type LED, Battery Type Nickel Cadmium, Battery Capacity 7 Ah, Bulb Wattage 4 W, 47 3/4 in Bulb Length Supported, Emergency Illumination Time 2.3 hr, Initial Light Output 1,250 lm, Driver Mounting Location Within Fixture, Emergency LED Array Shape H-Configuration, Housing Material Steel, Input Current 0.07 A, Input Voltage 120/277V AC, LED Fixture Array Intended LED Usage, 4 W Maximum Bulb Wattage, Number of Bulbs Supported 1, 122 Degrees F Maximum Operating Temperature

Documents & Resources

Restrictions

WARNING: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
