  9. Lighting Retrofit Kit, 10" W x 5" H

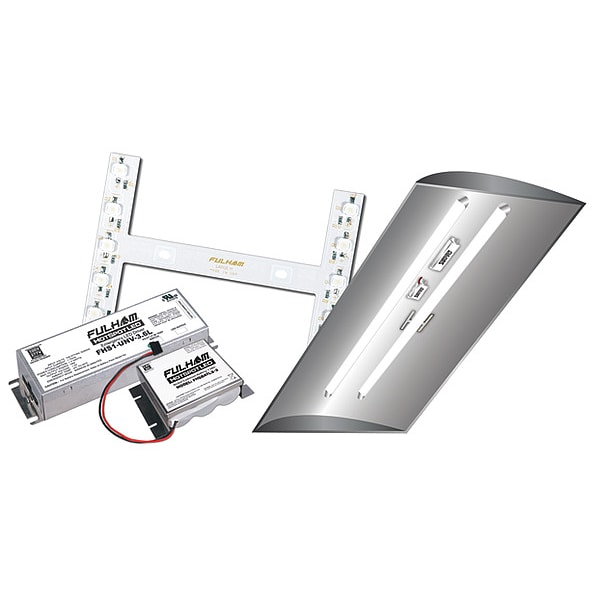

Fulham Lighting Retrofit Kit, 10" W x 5" H FHSKITT04LND - main

Lighting Retrofit Kit, 10" W x 5" H

  • Mfr # FHSKITT04LND

  • Zoro # G1806338

product price: $164.99
/ea
Free Shipping & Returns

Key Features

Length
4 11/16 in
Width
13/16 in
Height
5 in
For Use With
Fluorescent, Incandescent, and LED Lighting
Length - Emergency Lighting and Exit Signs
18-1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FHSKITT04LND
Zoro #
G1806338
UPC #
813068015196
Country of Origin
China

Dimensions

Length
4 11/16 in
Width
13/16 in
Height
5 in
Length - Emergency Lighting and Exit Signs
18-1/2"
Lamp Length Supported
47 3/4 in
Overall Height
5 in
Overall Length
4 11/16 in
Overall Width
13/16 in
Bulb Length Supported
47 3/4 in

Details

Item
LED Emergency Driver
For Use With
Fluorescent, Incandescent, and LED Lighting
Voltage - Emergency Lighting and Exit Signs
120/277
Number of Lamps Supported
1
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Initial Lumens - Emergency Lighting and Exit Signs
500
Battery Type
Nickel Cadmium
Standards
UL Listed
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Item - Emergency Lighting and Exit Signs
Emergency Lighting Retrofit Kit
Lamp Watts - Emergency Lighting and Exit Signs
4.0
Housing Material
Steel
Includes
Battery Pack, LED Module
Meets Class 2 Electrical Wiring
Yes
Total Harmonic Distortion
Less Than 10%
Number of Bulbs Supported
1
Frequency
47 to 63Hz
Driver Mounting Location
Within Fixture
Initial Lumens
500 lm
Case Form Factor
Compact
Input Voltage
120/277V AC
Profile
Standard Profile
Bulb Watts
4 W
Intended LED Usage
LED Fixture Array
Ouput Constant
Constant Current
CA Title 20 Compliant
Yes
Brand and Series
HotSpot1
Emergency Illumination Time
3.3 hr
Max. Bulb Watts
4 W
Max. Case Temp.
122 Degrees F
Recharge Time
24 hr
Wiring Connection
Wiring Attached
Operating Amps @ 120V
2.8
Output Technology
Fixed
Driver Class
Class 2
Series
HotSpot1
Output Current
2.8 A
Bulb Wattage
4 W
Maximum Operating Temperature
122 Degrees F
Battery Capacity
4 Ah
Emergency LED Array Shape
Linear
Self Diagnostics
Yes
Input Current
0.07 A
Output Voltage
3.6 V
Initial Light Output
500 lm
Minimum Operating Temperature
0 Degrees C
Maximum Bulb Wattage
4 W
Diagnostic Testing Function
Self Diagnostics/Remote Test

Description

LED Emergency Driver, Bulb Type LED, Battery Type Nickel Cadmium, Battery Capacity 4 Ah, Bulb Wattage 4 W, 47 3/4 in Bulb Length Supported, Emergency Illumination Time 3.3 hr, Initial Light Output 500 lm, Driver Mounting Location Within Fixture, Emergency LED Array Shape Linear, Housing Material Steel, Input Current 0.07 A, Input Voltage 120/277V AC, LED Fixture Array Intended LED Usage, 4 W Maximum Bulb Wattage, Number of Bulbs Supported 1, 122 Degrees F Maximum Operating Temperature
