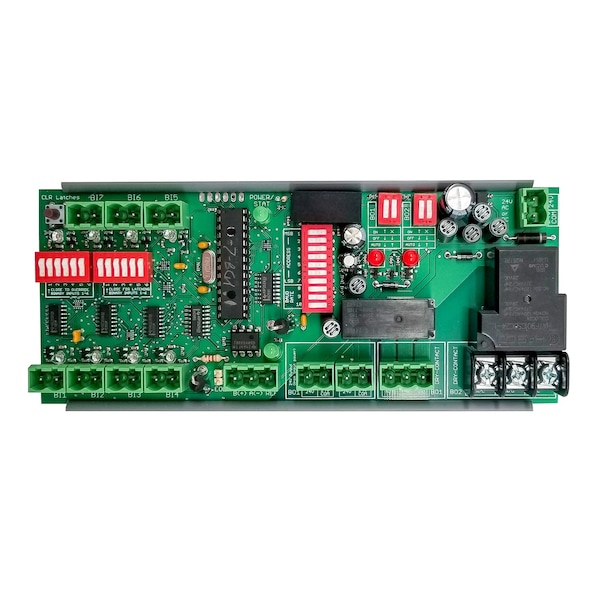

AHU Fan Safety Alarm and General Purpose Logic Circuit, BACnet MS/TP N
- Mfr # RIBMNWLB-7-BC
- Zoro # G1958996
product price:Â
$
350.99
/ea
Free Shipping & Returns
Key Features
Height
1.75
Width
6.615
Operating Temp.
-30 Degrees to 140 Degrees F
Voltage
24 Vac/dc
Color
Green
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RIBMNWLB-7-BC
- Zoro #
- G1958996
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Height
- 1.75
- Width
- 6.615
- Dimensions
- 6.62"H x 2.75"W x 1.25"D1/1.75"D2
Details
- Item
- AHU Fan Safety Alarm and General Purpose Logic Circuit
- Operating Temp.
- -30 Degrees to 140 Degrees F
- Voltage
- 24 Vac/dc
- Color
- Green
- Operate Time
- 8ms
- Terminations
- Functional Devices product installed at both ends of the MS/ TP network – Use 120 Ω end of line resistors. All other cases – Follow instructions from the device installed at the end of the MS/TP network.
- Baud Rate
- 9600, 19200, 38400, 57600, 76800, 115200 (DIP Switch Selectable)
- Power Input
- 24 Vac/dc: 50-60 Hz
- Humidity Range
- 5 to 95% (noncondensing)
- Relay Rating, BO 1-1
- 3 Amp Max @ 24 Vac or 24 Vdc (depending on power source supplied by user to power RIB device)
- Relay Rating, BO 1-2
- 10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac
- Network Media
- Twisted Pair 22-24AWG, shielded recommended
- Relay Override Switch
- DIP Switch Control
- Relay Rating, BO 2
- 20 Amp Resistive @ 277 Vac 5 Amp @ 480 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac 1 HP @ 120 Vac 2 HP @ 277 Vac
- Approvals
- UL864, UL916, C-UL, CE, CSFM
- Polarity
- Network is polarity sensitive
- Operating Temperature
- -30 to 140° F
- Expected Relay Life
- 10 million cycles minimum mechanical
Description
AHU Fan Safety Alarm and General Purpose Logic Circuit, BACnet MS/TP Network, 24 Vac/dc Power Input, Two Binary Outputs + Override, Seven Binary Inputs, 2.75" Track Mount
