  11. Class 2 Transformer, 100 VA, NEMA 1, 24V AC, 120V AC

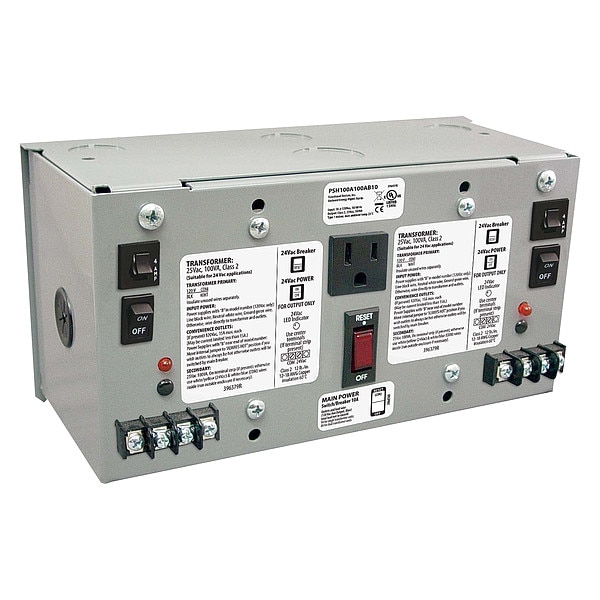

Functional Devices-Rib Class 2 Transformer, 100 VA, NEMA 1, 24V AC, 120V AC PSH100A100AB10 - main

Class 2 Transformer, 100 VA, NEMA 1, 24V AC, 120V AC

  • Mfr # PSH100A100AB10

  • Zoro # G5941765

product price: $308.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSH100A100AB10
Zoro #
G5941765
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 1/2 in
Overall Width
8.62 in
Overall Depth
4 1/2 in
Circuit Breaker Size
10 A

Details

Item
Class 2 Transformer
Input Voltage - Transformer
120V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Mounting - Transformer
Wall
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
NEMA 1
Enclosure Finish
Powder Coated
Standards
CE, OSHPD Seismic Certified, RoHS, UL Class 2, UL Listed, UL508
Protective Device
Circuit Breaker
Enclosure Type
Enclosed
Primary Connection
Pigtails
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Enclosure Style - Transformer
Enclosed
Includes
10A Main Breaker Switch, 120V AC Convenience Outlets, Finger-Safe Terminals, LED Power Indicator, On/Off Control
Secondary Connection
Screw Terminals
Approvals
Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE
Main Breaker on Input Power
10 Amp Switch / Breaker
Transformer
Two 100 VA Split-Bobbin
Series
PSH100A100A Series
Secondary Configuration
External Terminal Strip
24 Vac ON/OFF
On / Off Switch & Breaker
Max. Ambient Temperature
40° C
Number of Outputs
2
Overcurrent Protection
Circuit Breaker
Operating Temperature - Maximum
104 Degrees F
Wire Connection Type
Screw Terminals
Housing Material
Metal
Number of Convenience Outlets
1
Includes On/Off Switch
Individual Output On/Off Switch
Temperature Rise
Not Rated

Description

Class 2 Transformer, (2) 100 VA Rating, Input Voltage 120VAC, Output Voltage 24VAC, Multi Mounting, Protective Device Circuit Breaker, Primary Connection Pigtails, Secondary Connection Screw Terminals, 1 Phase, 50/60 Hz, Not Rated Temp. Rise, Enclosed Enclosure Type, Enclosure Rating NEMA 1, Enclosure Finish Powder Coated, Height 4.50 In., Depth 4.50 In., Width 8.62 In., Standards UL 5085-3, UL 916, cUL, CE, Special Seismic Certification of Equipment and Components: OSP-0201-10
