  11. Class 2 Transformer, 100 VA, NEMA 1, 24V AC, 120V AC

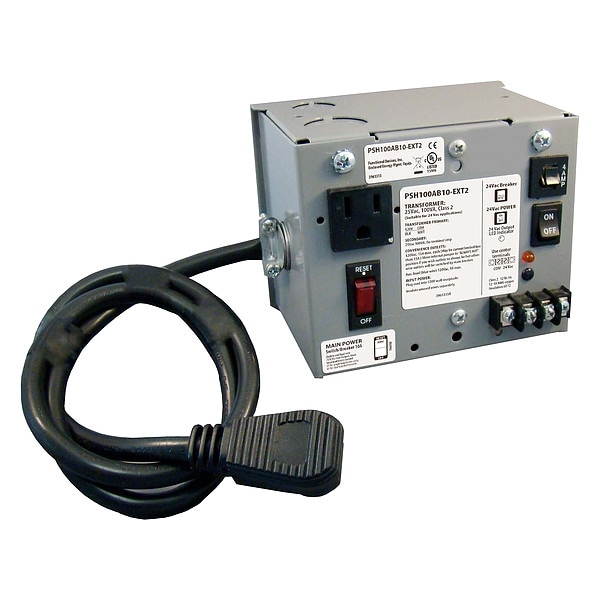

Functional Devices-Rib Class 2 Transformer, 100 VA, NEMA 1, 24V AC, 120V AC PSH100AB10-EXT2 - main

Class 2 Transformer, 100 VA, NEMA 1, 24V AC, 120V AC

  • Mfr # PSH100AB10-EXT2

  • Zoro # G6041585

product price: $262.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSH100AB10-EXT2
Zoro #
G6041585
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 1/2 in
Overall Width
5.44 in
Overall Depth
4 1/2 in
Circuit Breaker Size
10 A

Details

Item
Class 2 Transformer
Input Voltage - Transformer
120V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Mounting - Transformer
Wall
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
NEMA 1
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Secondary Connection
Screw Terminals
Standards
CE, RoHS, UL Class 2, UL Listed
Protective Device
Circuit Breaker
Includes
10A Main Breaker Switch, 120V AC Convenience Outlets, Finger-Safe Terminals, LED Power Indicator, On/Off Control
Primary Connection
3 ft Cord with Plug
Enclosure Finish
Powder Coated
Enclosure Style - Transformer
Enclosed
Enclosure Type
Enclosed
Main Breaker ON/OFF
Switch / Breaker (10 Amp) (Kills power to entire unit: Outlets, Aux. Output, & Transformer)* Total Combined Output 9A
Approvals
Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE
Transformer
One 100 VA (PSH100A10-EXT2)
Max. Ambient Temperature
40° C
24 Vac ON/OFF
On / Off Switch & Breaker
Number of Outputs
1
Wire Connection Type
Screw Terminals
Overcurrent Protection
Circuit Breaker
Number of Convenience Outlets
1
Operating Temperature - Maximum
104 Degrees F
Housing Material
Metal
Includes On/Off Switch
Individual Output On/Off Switch
Temperature Rise
Not Rated

Description

Class 2 Transformer, 100 VA Rating, Input Voltage 120VAC, Output Voltage 24VAC, Multi Mounting, Protective Device Circuit Breaker, Primary Connection 3 ft. Cord with Plug, Secondary Connection Screw Terminals, 1 Phase, 50/60 Hz, Not Rated Temp. Rise, Enclosed Enclosure Type, Enclosure Rating NEMA 1, Enclosure Finish Powder Coated, Height 4.50 In., Depth 4.50 In., Width 5.44 In., Standards Class 2 (UL Approved UL5085-3), UL916, C-UL, CE, RoHS
