  13. Current Sensing Relay, 0.25A, 30VAC/DC

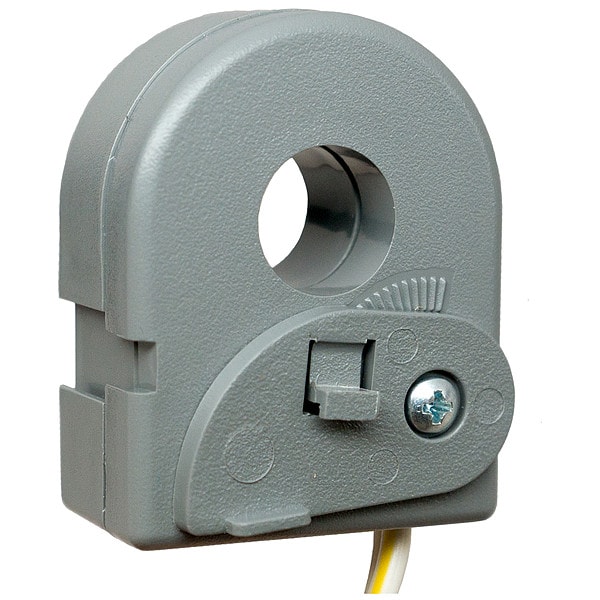

Functional Devices-Rib Current Sensing Relay, 0.25A, 30VAC/DC RIBXKF - main

Current Sensing Relay, 0.25A, 30VAC/DC

  • Mfr # RIBXKF

  • Zoro # G5168283

product price: $27.39
/ea

Key Features

Input or Control Voltage
30V AC/DC
AC Contact Rating - Relay
0.40A @ 30V
DC Contact Rating - Relay
0.40A @ 30V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBXKF
Zoro #
G5168283
UPC #
-
Country of Origin
United States

Dimensions

Overall Height - Relay
1.5 in
Body Depth - Relay
2.05 in
Body Height - Relay
1.5 in
Body Width - Relay
1.46 in
Body Depth
2.05 in
Sensing Hole Diameter
0.5 in
Body Height
1.5 in
Body Width
1.46 in
Overall Depth
1.5 in

Details

Item
Current Sensor Relay
Input or Control Voltage
30V AC/DC
AC Contact Rating - Relay
0.40A @ 30V
DC Contact Rating - Relay
0.40A @ 30V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
Sensing Amp Range
0.25 to 150.00A
Trip Point
0.25 A
Trip Delay
1 sec
Core Type - Relay
Solid
Item - Relay
Current Sensing Relay
Contact Form
SPST-NO
Type of Output
Solid State
Sensor Opening
0.50 in
Contact Amps
0.40A
Electrical Connection
Wire Leads
Max. Inrush Current
4.0 A
Input Voltage
30V AC/DC
Status Indicator
No Indicator
Core Type
Solid
Mounting
Tab
Type
Solid Core
Contact Rating (DC)
0.4 A @ 30V
For Use With
Sensors
Mounting Style
Surface
Monitored Parameters
Overcurrent, Undercurrent
Number of Pins
2
Adjustment Method
Switch
Wire Gauge
18 AWG
Minimum Operating Temperature
-30 Degrees F
Includes
Removable Mounting Tab
Contact Rating (AC)
0.4 A @ 30V
Current Rating
0.4 A
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
Maximum Operating Temperature
140 Degrees F
Maximum Switching Voltage
30V AC/DC
Trip Point Type
Fixed
Threshold
Fixed, .25 Amp
Mounting/Installation
Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place
Sensing Range
.25-150 Amp
Sensor Contact Output
Current below threshold: Open ; Current above threshold: Closed
Approvals
UL Listed, C-UL, CE, RoH, UL916, S (All models)
Series
RIBXK Series
Humidity Range
5 to 95% (noncondensing)
Sensor Contact Termination
Wht/Yel 16� 18 AWG Wire Leads
Sensor Contact Type
Solid State Switch SPST
Switching Voltage Range
30 Vac/dc
Operating Temperature
-30 to 140° F
Maximum Switching Current
.4 Amps Max
Max Sense Voltage
600 Vac

Description

Current Sensor Relay, Contact Form SPST-NO, Contact Rating (AC) 0.4 A @ 30V, Contact Rating (DC) 0.4 A @ 30V, Core Type Solid, Current Rating 0.4 A, Input Voltage 30V AC/DC, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Number of Pins 2, Trip Point 0.25 A, Trip Point Type Fixed, Adjustment Method Switch, Electrical Connection Wire Leads, Sensing Hole Diameter 0.5 in, Status Indicator No Indicator, Wire Gauge 18 AWG, Body Depth 2.05 in, Body Height 1.5 in
