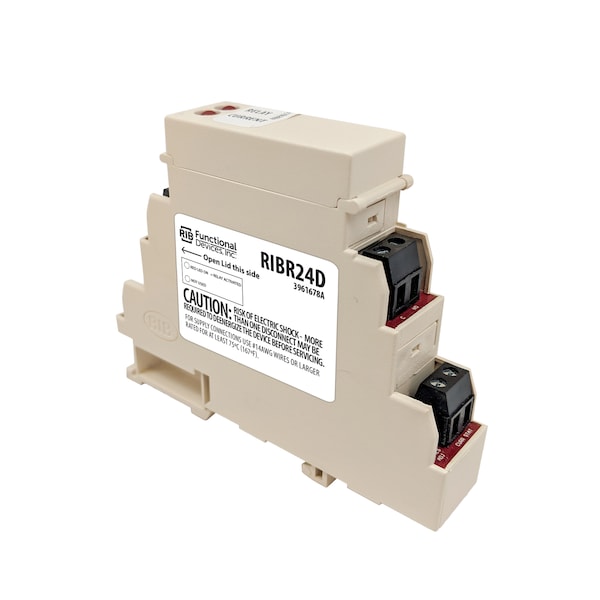

Functional Devices-Rib DIN Rail Mount Relay, 10 Amp DPDT, 24 Vac/dc Coil RIBR24D - main

DIN Rail Mount Relay, 10 Amp DPDT, 24 Vac/dc Coil

  • Mfr # RIBR24D

  • Zoro # G1651197

product price: $34.89
/ea

Key Features

Height
0.78
Length
3.88
Width
2.76
Color
Gray
Voltage
24 Vac/dc
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBR24D
Zoro #
G1651197
UPC #
-
Country of Origin
United States

Dimensions

Height
0.78
Length
3.88
Width
2.76
Dimensions
2.76"H x 3.88"W x 0.78"D

Details

Item
DIN Rail Mount Relay
Color
Gray
Voltage
24 Vac/dc
Accessories
ADIN35, ADIN35ES sold separately
Power and Control Current
24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 24 Vdc
Replacement Relay
AR24D
Contact Ratings
10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120-240 Vac (N/O) 1/3 HP @ 120-240 Vac (N/C) B300 Pilot Duty 120Vac 30A Make 3A Break (360 VA) 240Vac 15A Make 1.5A Break (360 VA) 208Vac 17.3A Make 1.73A Break (360 VA) 277Vac 13A Make 1.3A Break (360 VA) 24Vac 30A Make 5A Break (120VA) 5A Max
Expected Relay Life
10 million cycles minimum mechanical
Relay Status
LED On - Activated
No. of Relays & Contact Type
One (1) DPDT Continuous Duty Coil
Coil Voltage Input
24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc
Operating Temperature
-30 to 140° F
Approvals
UL Listed, UL916, C-UL, CE
Terminal Strip
14-22 AWG wire
Humidity Range
5 to 95% (noncondensing)
Operate Time
8ms

Description

DIN Rail Mount Relay, 10 Amp DPDT, 24 Vac/dc Coil
