Shop FUNCTIONAL DEVICES-RIB

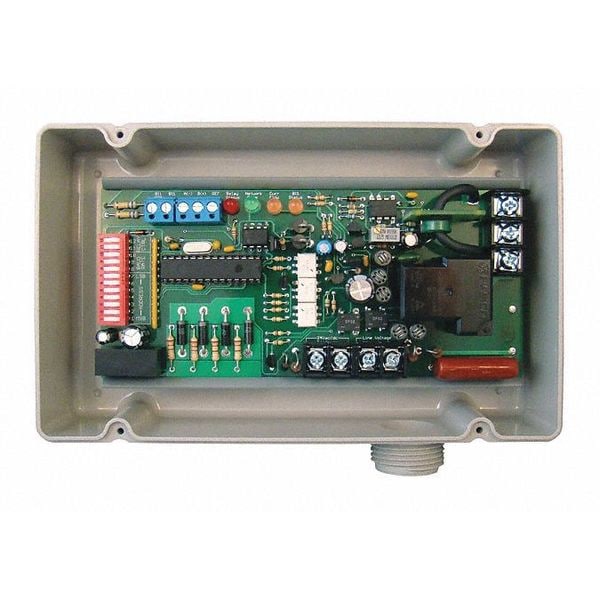

Enclosed MS/TP Network Relay

  • Mfr # RIBTWX2401B-BC-N4

  • Zoro # G3226470

product price:  $232.99
/ea
Free Shipping & Returns

Key Features

Dimensions
4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2" NPT nipple
Height
2
Application
MT4-4
Width
7
Type
Plastic Box
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIBTWX2401B-BC-N4
Zoro #
G3226470
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2" NPT nipple
Height
2
Width
7

Details

Item
Enclosed MS/TP Network Rly,Analog Input
Application
MT4-4
Type
Plastic Box
Housing Rating
NEMA 4
Feature
LED
LCD
Surface
Operating Humidity
5% to 95% non-condensing
Conduit Hub
1/2" NPT
Duty
Continuous duty
Relay Type
SPDT
Coil Voltage
24 VAC, 24 VDC, 120 VAC
Baud Rate
9600, 19200, 38400, 57600, 76800, and 115200
LED Indication
Green: network status, Red: relay status
Contact Rating
20A
Frequency
50/60 Hz
Operating Temperature
-30° to 140°F (35° to 60°C)
Supply Voltage
24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA
Life Expectancy
10 million cycles minimum
Mounting Type
Surface
Contact Type
1-SPDT
Communications
BACnet
Approvals
UL listed file #E68805, CE certified, BACnet certified
Power Input
105 mA @ 24 VAC, 78 mA @ 24 VDC, 105 mA @ 120 VAC

Description

BACnet MS/TP Network Relay Device, One Binary Output, Two Binary Inputs (One Current Sensor Relay Load Sensing & One Dry Contact Digital Input), 24 Vac/dc/120 Vac Power Input, NEMA 4X Housing
