  13. Enclosed Pre-Wired Relay, 10A at 277VAC, SPST

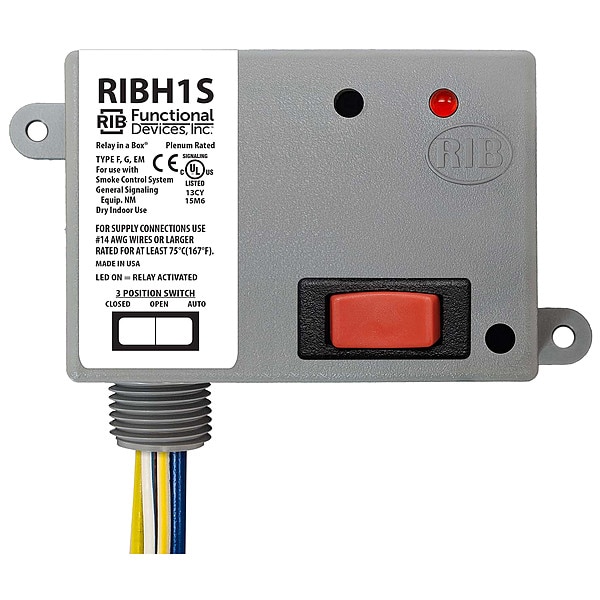

Functional Devices-Rib Enclosed Pre-Wired Relay, 10A at 277VAC, SPST RIBH1S - main

Enclosed Pre-Wired Relay, 10A at 277VAC, SPST

  • Mfr # RIBH1S

  • Zoro # G1161404

product price: $53.69
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
AC Contact Rating - Relay
10A @ 277V
Contact Form - Relay
SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBH1S
Zoro #
G1161404
UPC #
-
Country of Origin
United States

Dimensions

Nipple Size
0.50 in NPT
Body Depth - Relay
1.8 in
Lead Length
16 in
Dimensions
2.3"H x 3.2"W x 1.8"D
Overall Height - Relay
2.3 in
Body Width - Relay
3.2 in
Body Height - Relay
2.3 in
Body Height
3.2 in
Body Depth
1.8 in
Body Width
2.3 in
Overall Depth
1.8 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC, 208 to 277V AC
AC Contact Rating - Relay
10A @ 277V
Contact Form - Relay
SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.4W, 8.1 to 10.8VA
Contact Material
Gold Flashed Silver Cadmium Oxide
Contact Amp Rating (Resistive)
10A @ 277VAC
Contact Form
SPST-NO
Features
Override Switch
Application
Pilot
HP @ 120V
1/6 hp, 1/3 hp
Response Time
20 msec
Indicator Type
LED
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
HP @ 240V
1/6 hp, 1/3 hp
Hz
50/60
Item
Enclosed Pre-Wired Relay
Hz - Electrical
50 Hz, 60 Hz
NEMA Enclosure Type
1
Status Indicator
LED Indicator
Mounting Style
Surface
Minimum Operating Temperature
-30 Degrees F
For Use With
Exhaust Fans, Motors, Vacuums
Sealing
Enclosed
Frequency
50/60 Hz
Contact Rating (AC)
10 A @ 277V
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
10,000,000
Input Voltage
10 to 30V AC, 208 to 277V AC/DC
Horsepower @ 240V AC
1/6 hp
Horsepower @ 120V AC
1/6 hp
Operating Current
10 A at 10 to 30V AC/DC, 10 A at 208 to 277V AC
NEMA Enclosure Rating
1
Coil Voltage
10-30V AC/DC/208-277V AC
Current Rating
10 A
Humidity Range
5 to 95% (noncondensing)
No. of Relays & Contact Type
One (1) SPST Continuous Duty Coil
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 39 mA @ 208-277 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Contact Ratings
10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Operating Temperature
-30 to 140° F
Override Switch
Yes
Wires
16", 600V Rated
Gold Flash
Yes
Relay Status
LED On - Activated
Expected Relay Life
10 million cycles minimum mechanical
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Operate Time
20ms
Approvals
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Coil Voltage Input
10-30 Vac/dc ; 208-277 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc

Description

Enclosed Pre-Wired Relay, Contact Form SPST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Input Voltage 10 to 30V AC, 208 to 277V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 3.2 in, Body Width 2.3 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp, Lead Length 16 in
