  13. Enclosed Pre-Wired Relay, 10A at 30VDC, SPDT

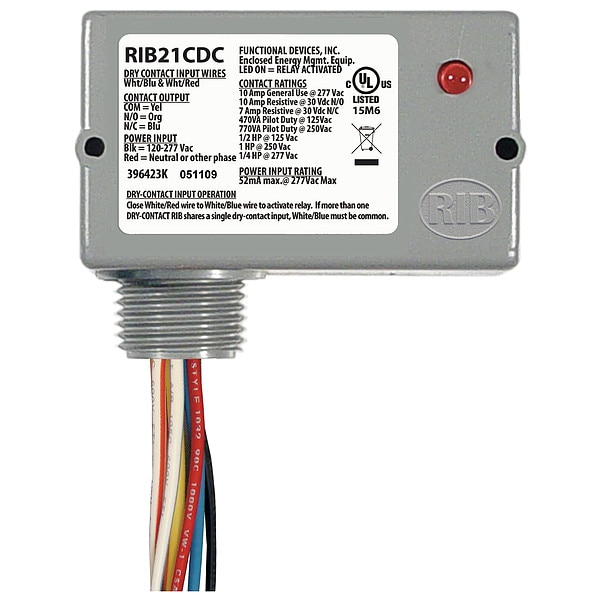

Functional Devices-Rib Enclosed Pre-Wired Relay, 10A at 30VDC, SPDT RIB21CDC - main

Enclosed Pre-Wired Relay, 10A at 30VDC, SPDT

  • Mfr # RIB21CDC

  • Zoro # G0922722

product price: $39.39
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V (NO), 7A @ 30V (NC)
Contact Form - Relay
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIB21CDC
Zoro #
G0922722
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
1.7"H x 2.8"W x 1.5"D
Lead Length
16 in
Overall Height - Relay
1.7 in
Body Width - Relay
2.8 in
Nipple Size
0.50 in NPT
Body Depth - Relay
1.5 in
Body Height - Relay
1.7 in
Body Height
1.5 in
Body Depth
1.5 in
Body Width
2.8 in
Overall Depth
1.5 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
120 to 277V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V (NO), 7A @ 30V (NC)
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
12.0VA
Hz
50/60
NEMA Enclosure Type
1
Hz - Electrical
50 Hz, 60 Hz
Application
Pilot
HP @ 120V
1/2 hp
Response Time
1.8 sec
HP @ 240V
1 hp
Standards
CE Certified, RoHS Compliant, UL 916, UL Listed
Indicator Type
LED
Item
Enclosed Pre-Wired Relay
Contact Amp Rating (Resistive)
10A @ 30VDC (NO), 7A @ 30VDC (NC)
Contact Material
Silver Alloy
Features
Dry Contact
Contact Form
SPDT
Coil Voltage
120-277V AC
For Use With
Exhaust Fans, Motors, Vacuums
Status Indicator
LED Indicator
Horsepower @ 120V AC
1/2 hp
Current Rating
10 A
NEMA Enclosure Rating
1
Minimum Operating Temperature
-30 Degrees F
Mechanical Operating Durability
10,000,000
Contact Rating (DC)
10 A @ 30V
Maximum Operating Temperature
140 Degrees F
Contact Rating (AC)
10 A @ 277V
Power Consumption
12 VA
Mounting Style
Surface
Input Voltage
120 to 277V AC
Operating Current
10 A at 120 to 277V AC
Frequency
50/60 Hz
Sealing
Enclosed
Horsepower @ 240V AC
1 hp
Wires
16", 600V Rated
Power Input
50 mA @ 240 Vac Max.
Expected Relay Life
10 million cycles minimum mechanical
Operating Temperature
-30 to 140° F
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Humidity Range
5 to 95% (noncondensing)
Approvals
UL Listed, UL916, C-UL, CE
Override Switch
No
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Gold Flash
No
Relay Status
LED On - Activated
Contact Ratings
10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac
Operate Time
1.8 Seconds

Description

Enclosed Pre-Wired Relay, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Input Voltage 120 to 277V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 2.8 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Lead Length 16 in
