Shop FUNCTIONAL DEVICES-RIB

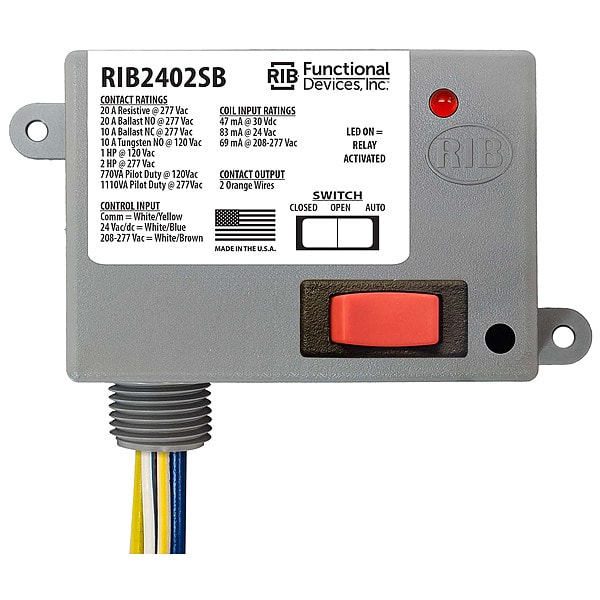

Enclosed Pre-Wired Relay, 20A at 277VAC, SPST

  • Mfr # RIB2402SB

  • Zoro # G2308022

product price:  $57.79
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
AC Contact Rating - Relay
20A @ 277V
Contact Form - Relay
SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIB2402SB
Zoro #
G2308022
UPC #
-
Country of Origin
United States

Dimensions

Overall Height - Relay
2.3 in
Body Width - Relay
3.2 in
Body Depth - Relay
1.8 in
Lead Length
16 in
Nipple Size
0.50 in NPT
Dimensions
2.3"H x 3.2"W x 1.8"D
Body Height - Relay
2.3 in
Body Width
2.3 in
Overall Depth
1.8 in
Body Height
3.2 in
Body Depth
1.8 in
Wire Length
16" (40.6 cm)

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
Coil Volts
208 to 277V AC, 24V AC/DC
AC Contact Rating - Relay
20A @ 277V
Contact Form - Relay
SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.84W, 14.4 to 19.1VA
Hz - Electrical
50 Hz, 60 Hz
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
HP @ 240V
2
Application
Power
Response Time
18 msec
Contact Form
SPST-NO
Features
Override Switch
Hz
50/60
NEMA Enclosure Type
1
Contact Amp Rating (Resistive)
20A @ 277VAC
HP @ 120V
1 hp
Indicator Type
LED
Item
Enclosed Pre-Wired Relay
Contact Material
Silver Cadmium Oxide
Mounting Style
Surface
Operating Current
20 A at 208 to 277V AC, 20 A at 24V AC/DC
Coil Voltage
24V AC/DC/208-277V AC
Current Rating
20 A
Contact Rating (AC)
10 A @ 277V, 20 A @ 277V
For Use With
Exhaust Fans, Motors, Vacuums
Mechanical Operating Durability
10,000,000
Input Voltage
208 to 277V AC/DC, 24V AC
NEMA Enclosure Rating
1
Frequency
50/60 Hz
Status Indicator
LED Indicator
Horsepower @ 120V AC
1 hp
Sealing
Enclosed
Minimum Operating Temperature
-30 Degrees F
Maximum Operating Temperature
140 Degrees F
Approvals
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
Operating Temperature
-30° to 140°F(-34° to 60°C)
LCD
Surface
Mount
Override Switch Mount
Contact Type
1-SPST
Contact Rating
20A
Conduit Hub
1/2" NPT, 3/4" NPT
Operating Humidity
5% to 95% non-condensing
Type
Plastic Box
Relay Status
LED, ON - relay activated
Life Rating
10 million cycles minimum mechanical
Housing Rating
NEMA 1

Description

Enclosed Pre-Wired Relay, Coil Voltage 24V AC/DC/208-277V AC, Contact Form SPST-NO, Current Rating 20 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, 20 A @ 277V, Input Voltage 208 to 277V AC/DC, 24V AC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 3.2 in, Body Width 2.3 in, Contact Material Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Lead Length 16 in
