  13. Enclosed Pre-Wired Rlay, 10A, (3)SPST, SPDT

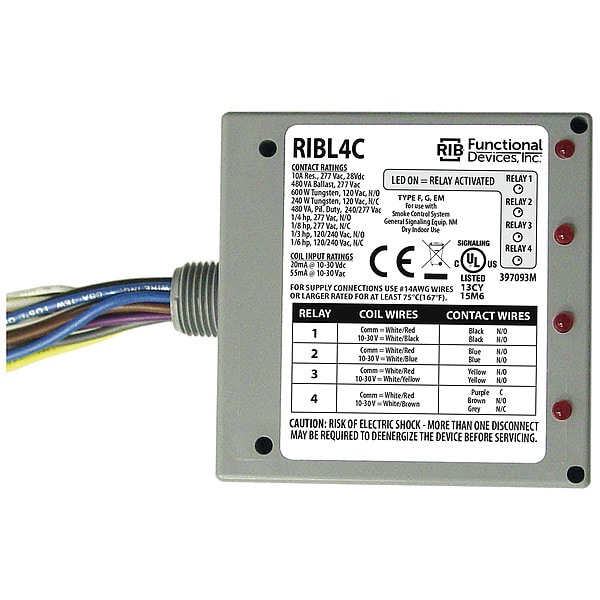

Functional Devices-Rib Enclosed Pre-Wired Rlay, 10A, (3)SPST, SPDT RIBL4C - main

Enclosed Pre-Wired Rlay, 10A, (3)SPST, SPDT

  • Mfr # RIBL4C

  • Zoro # G2295894

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBL4C
Zoro #
G2295894
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
4.0"H x 4.0"W x 1.8"D
Body Depth - Relay
1.8 in
Body Width - Relay
4.0 in
Lead Length
16 in
Overall Height - Relay
4.0 in
Body Height - Relay
4.0 in
Nipple Size
0.50 in NPT
Body Depth
1.8 in
Body Width
4 in
Overall Depth
1.8 in
Body Height
4 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
Contact Form - Relay
(1) SPDT, (3) SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.1 to 0.6W, 0.3 to 1.6VA
HP @ 240V
1/6 hp, 1/3 hp
Application
Pilot
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
HP @ 120V
1/6 hp, 1/3 hp
Hz
50/60
Contact Material
Gold Flashed Silver Cadmium Oxide
Hz - Electrical
50 Hz, 60 Hz
Item
Enclosed Pre-Wired Relay
NEMA Enclosure Type
1
Indicator Type
LED
Contact Form
SPDT, 3PST-NO
Contact Amp Rating (Resistive)
10A @ 277VAC, 10A @ 28VDC
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty
Response Time
20 msec
For Use With
Exhaust Fans, Motors, Vacuums
Current Rating
10 A
Contact Rating (DC)
10 A @ 28V
Minimum Operating Temperature
-30 Degrees F
Frequency
50/60 Hz
Mechanical Operating Durability
10,000,000
NEMA Enclosure Rating
1
Maximum Operating Temperature
140 Degrees F
Contact Rating (AC)
10 A @ 277V
Sealing
Enclosed
Horsepower @ 120V AC
1/6 hp
Coil Voltage
10-30V AC/DC
Status Indicator
LED Indicator
Mounting Style
Surface
Operating Current
10 A at 10 to 30V AC/DC
Input Voltage
10 to 30V AC/DC
Horsepower @ 240V AC
1/6 hp
Relay Status
LED On - Activated
Contact Ratings
10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Override Switch
No
Expected Relay Life
10 million cycles minimum mechanical
Humidity Range
5 to 95% (noncondensing)
Operate Time
20ms
No. of Relays & Contact Type
Three (3) SPST + One (1) SPDT Continuous Duty Coil (RIBL4C)
Gold Flash
Yes
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Operating Temperature
-30 to 140° F
Coil Voltage Input
10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Approvals
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Wires
16", 600V Rated

Description

Enclosed Pre-Wired Relay, Coil Voltage 10-30V AC/DC, Contact Form SPDT, 3PST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 4 in, Body Width 4 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp
