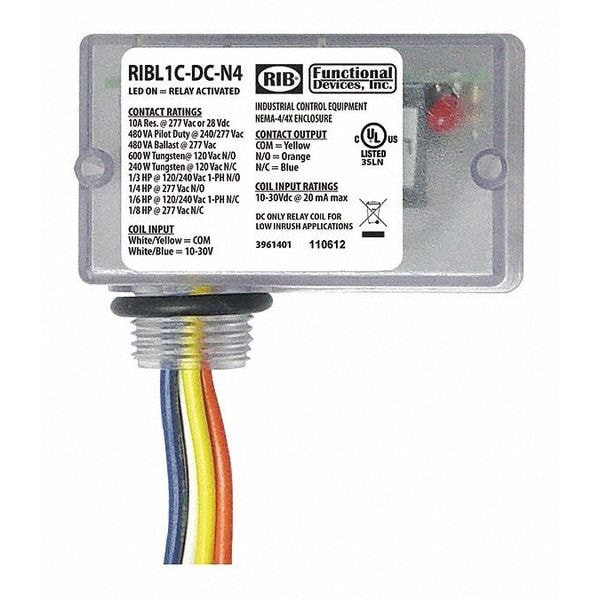

Enclosed Relay, 10A, SPDT

Mfr # RIBL1C-DC-N4
Zoro # G3224967

41.65

Key Features

Coil Volts

12V AC, 12V DC

Width

2.8

Dimensions

1.70" x 2.80" x 1.50" with .50" NPT nipple

Height

1.5

Gold Flash

Yes

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: RIBL1C-DC-N4
Zoro #: G3224967
UPC #: -
Country of Origin: United States

Dimensions

Width: 2.8
Dimensions: 1.70" x 2.80" x 1.50" with .50" NPT nipple
Height: 1.5

Details

Coil Volts: 12V AC, 12V DC
Item: Enclosed Relay,10A,SPDT,12VAC/DC,Polarzd
Gold Flash: Yes
Operating Temperature: -30 to 140° F
Coil Voltage Input: 10-30 Vdc Drop Out - 2.8 Vdc Pull In - 10 Vdc
Housing Rating: NEMA 4X housing
Coil Current: 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Wires: 16", 600V Rated
Expected Relay Life: 10 million cycles minimum mechanical
Approvals: UL Listed, UL916, UL864, UL508, C-UL California State Fire Marshal, CE
Operate Time: 20ms
Humidity Range: 5 to 95% (noncondensing)
Contact Ratings: 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Relay Status: LED On - Activated
No. of Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Override Switch: No

Description

Pilot Relay, 10 Amp SPDT, 10-30 Vdc Limited Inrush Coil, NEMA 4X Clear Housing
