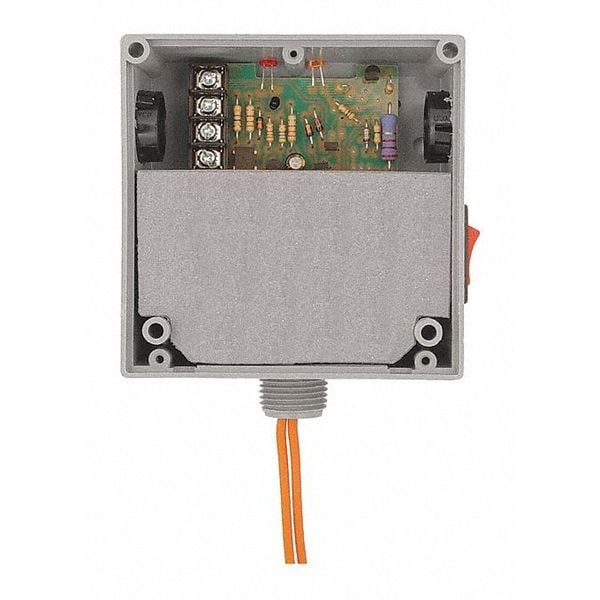

Enclosed Relay/Current Switch, 10A

Name: Enclosed Relay/Current Switch, 10A
Brand: Functional Devices-Rib
SKU: G3227259
Price: 82.15 USD
Availability: InStock

82.15

/ea

Width

Type

Internal w/ contact status

Wire Length

16", 600V Rated

Housing Rating

UL Accepted for Use in Plenum, NEMA 1

Override Switch

Yes

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Current Switch Relay
Type: Internal w/ contact status
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Override Switch: Yes
Operate Time: 20ms
Expected Relay Life: 10 million cycles minimum mechanical
Humidity Range: 5 to 95% (noncondensing)
Threshold: Fixed, .50 Amp
Operating Temperature: -30 to 140° F
Contact Ratings: 10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Resistive: 10 Amp
Relay Status: Red LED On - Activated
No. of Relays & Contact Type: One (1) SPST Continuous Duty Coil
Sensor Output: Solid State Contact 30 Vac/dc, 0.4 Amp
Gold Flash: Yes
Coil Current: 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Coil Voltage Input: 10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Approvals: UL Listed, UL916, C-UL, CE
Sensing Range: .50-10 Amps

Current Switch and Relay Combination, 10 Amp SPST + Override, 10-30 Vac/dc Coil, Fixed, 0.50-10 Amp, NEMA 1 Housing
