Shop FUNCTIONAL DEVICES-RIB

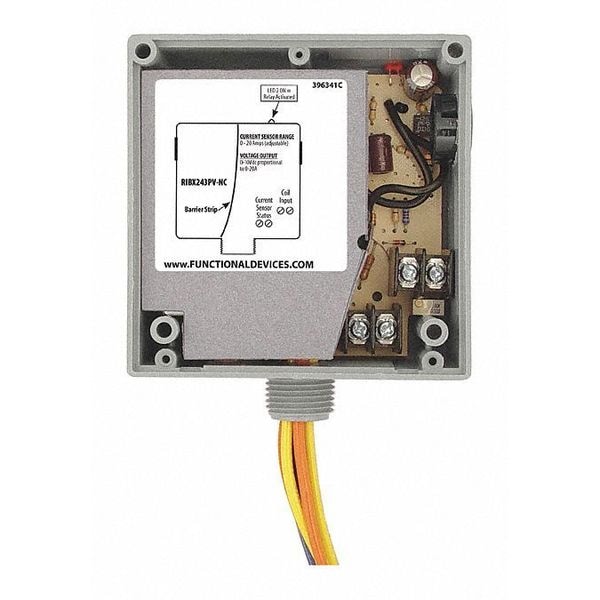

Enclosed SPST-N/C Relay/Analog, 20A

  • Mfr # RIBX243PV-NC
  • Zoro # G3226793
product price:
$
247.99
/ea
Free Shipping & Returns

Key Features

Height
1.8
Dimensions
4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Width
4
Wire Length
16", 600V Rated
Humidity Range
5 to 95% (noncondensing)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIBX243PV-NC
Zoro #
G3226793
UPC #
-
Country of Origin
United States

Dimensions

Height
1.8
Dimensions
4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Width
4
Wire Length
16", 600V Rated

Details

Item
Enclosed,20A,SPST-N/C,Relay/Analog
Humidity Range
5 to 95% (noncondensing)
Expected Relay Life
10 million cycles minimum mechanical
Switch Position
Normally Closed
Override Switch
No
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
No. of Relays & Contact Type
One (1) 3PST Continuous Duty Coil
Sensor Range
.50-20 Amps
Approvals
UL Listed, UL916, C-UL, CE
Contact Ratings
20 Amp Resistive @ 300 Vac, 28 Vdc 20 Amp Ballast @ 277-480 Vac Not rated for Electronic Ballast 15 Amp Resistive @ 600 Vac 770 VA Pilot Duty @ 120 Vac, 1 Phase 1158 VA Pilot Duty @ 240 Vac, 1 Phase 1110 VA Pilot Duty @ 277 Vac, 1 Phase 1640 VA Pilot Duty @ 480 Vac, 1 Phase 1466 VA Pilot Duty @ 240 Vac, 3 Phase 2112 VA Pilot Duty @ 480 Vac, 3 Phase Heavy Pilot Duty @ 600 Vac 7.5 HP @ 480 Vac, 3 Phase 5 HP @ 240 Vac, 3 Phase 3 HP @ 480-600 Vac, 1 Phase 2 HP @ 240-277 Vac, 1 Phase 1 HP @ 120 Vac, 1 Phase
Gold Flash
No
Coil Voltage Input
24 Vac/dc ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 22 Vdc
Operating Temperature
-30 to 140° F
Relay Status
Red LED On - Activated
Operate Time
20ms
Sensor Type
Internal, with contact status Current sensing on orange wires
Coil Current
210 mA @ 24 Vac 154 mA @ 30 Vdc

Description

Transducer and Relay Combination, 20 Amp 3PST-N/C, 24 Vac/dc Coil, Analog, 0-20 Amp, 0-10 Vdc Output, NEMA 1 Housing
