Shop FUNCTIONAL DEVICES-RIB

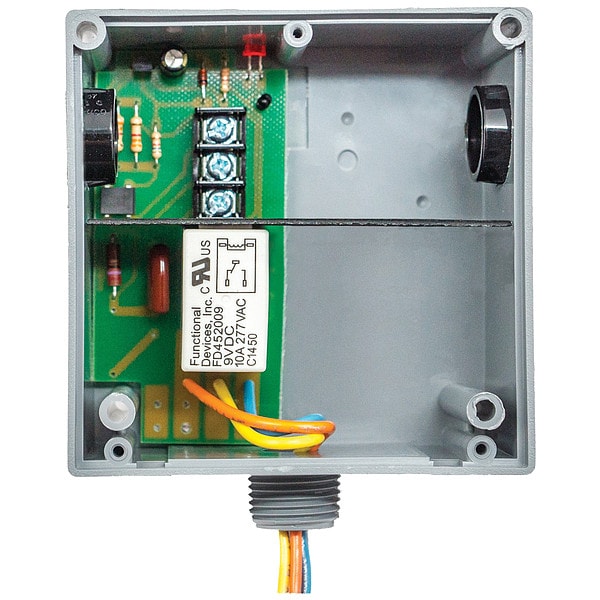

Enclosed T-Style Relay, Hi/Low Separation

  • Mfr # RIBTU1C

  • Zoro # G3226391

product price:
$
38.10
/ea

Key Features

Dimensions
4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Height
1.8
Width
4
Approvals
UL Listed, UL916, C-UL, CE UL864, California State Fire Marshal
Wires
16", 600V Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIBTU1C
Zoro #
G3226391
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
4.00"H x 4.00"W x 1.81"D with 0.50" NPT nipple
Height
1.8
Width
4

Details

Item
Enclosed T-Style Relay,Hi/Low Separation
Approvals
UL Listed, UL916, C-UL, CE UL864, California State Fire Marshal
Wires
16", 600V Rated
Gold Flash
Yes
Override Switch
No
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Humidity Range
5 to 95% (noncondensing)
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Expected Relay Life
10 million cycles minimum mechanical
Coil Voltage Input
10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBTU1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Relay Status
LED On - Activated
Contact Ratings
10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Operating Temperature
-30 to 140° F
Operate Time
20ms
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBTU1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc

Description

Enclosed T-Style Relay,Hi/Low Separation
