Shop FUNCTIONAL DEVICES-RIB

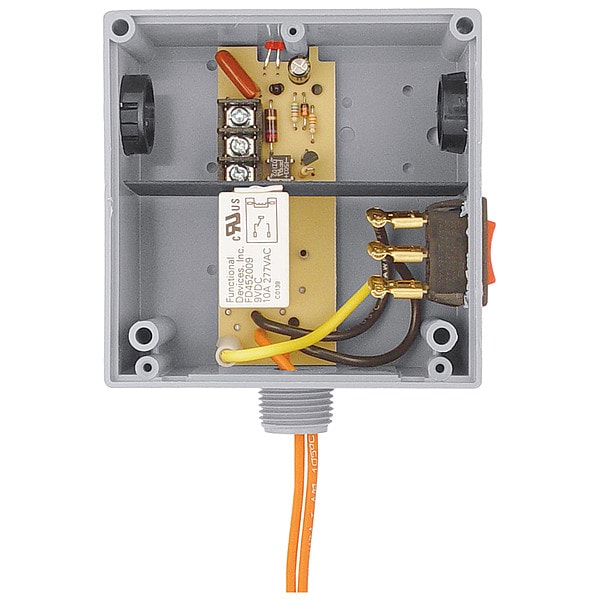

Enclosed T-Style Relay, Hi/Low Separation

  • Mfr # RIBTU1S

  • Zoro # G3226452

product price:
$
54.00
/ea

Key Features

Dimensions
4.00" x 4.00" x 1.80" with .50" NPT nipple
Width
4
Height
1.8
Coil Voltage Input
10-30 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Gold Flash
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIBTU1S
Zoro #
G3226452
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
4.00" x 4.00" x 1.80" with .50" NPT nipple
Width
4
Height
1.8

Details

Item
Enclosed T-Style Relay,Hi/Low Separation
Coil Voltage Input
10-30 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Gold Flash
Yes
Wires
16", 600V Rated
Operating Temperature
-30 to 140° F
Operate Time
20ms
Override Switch
Yes
Approvals
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Relay Status
LED On - Activated
No. of Relays & Contact Type
One (1) SPST Continuous Duty Coil
Contact Ratings
10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Expected Relay Life
10 million cycles minimum mechanical
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Humidity Range
5 to 95% (noncondensing)

Description

Enclosed T-Style Relay,Hi/Low Separation
