  13. Prewired Rocker Switch LED, SPDT, 5A at 30VDC

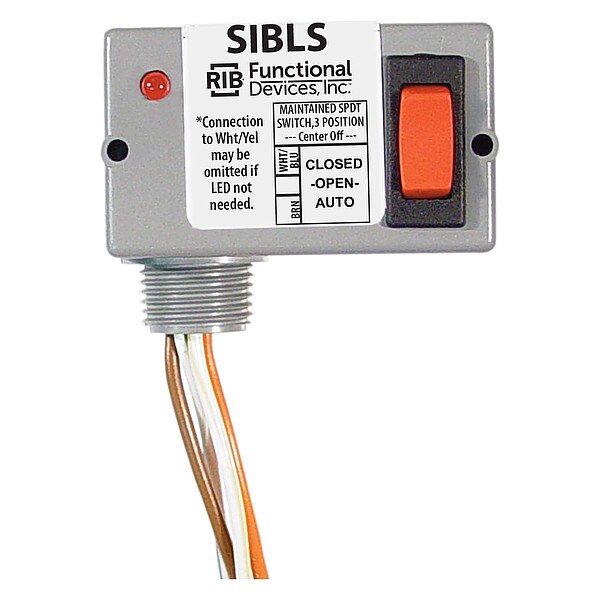

Functional Devices-Rib Prewired Rocker Switch LED, SPDT, 5A at 30VDC SIBLS - main

Prewired Rocker Switch LED, SPDT, 5A at 30VDC

  • Mfr # SIBLS

  • Zoro # G5174924

product price: $26.19
/ea

Key Features

Contact Form
SPST
Number of Connections
4
Switch Function
On Maintained/Off Maintained/On with Indicator Maintained
AC Contact Rating
5 A @ 30 V
DC Contact Rating
5 A @ 30 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SIBLS
Zoro #
G5174924
UPC #
-
Country of Origin
United States

Dimensions

Height
1.5 in
Width
2.8 in
Depth
1.7 in
Dimensions
1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
Overall Depth
1.5 in
Overall Height
1.7 in
Overall Width
2.8 in

Details

Item
Prewired Rocker Switch
Contact Form
SPST
Number of Connections
4
Switch Function
On Maintained/Off Maintained/On with Indicator Maintained
AC Contact Rating
5 A @ 30 V
DC Contact Rating
5 A @ 30 V
Connection
16 in Wire Leads
Special Features
1/2 in NPT Nipple
Switch Color
Red
Standards
CE, cUL, RoHS, US Listed
Legend
Closed/Open/Auto
Operating Temp. Range
-30 Degrees to 140 Degrees F
NEMA Rating
1
Body Color
Gray
Product Type
Prewired Rocker Switch
Switch Ratings
5 Amp @ 30Vac/dc
Approvals
CE
Operating Temperature
-30 to 140° F
Switch Position
3 Position Maintained, On/Off/On
Wires
16", 600V Rated
Humidity Range
5 to 95% (noncondensing)
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Includes Lens
Lens Included
Operating Temperature - Maximum
140 Degrees F
Lens Color
Red
Features
Override Switch on Load Side of Relay
Lamp Voltage - Maximum
30 V AC/DC
Lamp Module Type
Transformer
Number of Positions
3
Lamp Type
LED
Switch Function Configuration
On/Off/On
Operating Temperature - Minimum
-30 Degrees F
Terminal Connection Type
16 in Wire Leads
Operator Illumination
Illuminated
Includes Lamp Module
Lamp Module Included
NEMA Enclosure Rating
1

Description

Prewired Rocker Switch, Contact Form SPST, Number of Connections 4, Switch Function On Maintained/Off Maintained/On with Indicator Maintained, AC Contact Rating 5 A @ 30 V, DC Contact Rating 5 A @ 30 V, Legend Closed/Open/Auto, Body Color Gray, Switch Color Red, Operating Temp. Range -30 Degrees to 140 Degrees F, Standards CE, cUL, RoHS, US Listed, IP Rating Not Applicable, Special Features 1/2 in NPT Nipple
