  13. RIB Enclosed Relay, 10A, NEMA 4/4X, DPDT, 24VAC/DC/120VAC

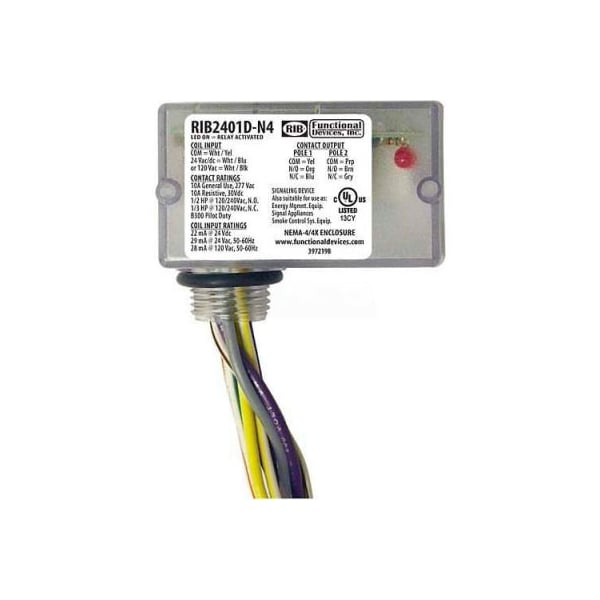

Functional Devices-Rib RIB Enclosed Relay, 10A, NEMA 4/4X, DPDT, 24VAC/DC/120VAC RIB2401D-N4 - main

RIB Enclosed Relay, 10A, NEMA 4/4X, DPDT, 24VAC/DC/120VAC

  • Mfr # RIB2401D-N4

  • Zoro # G608641398

product price: $92.75
/ea
Free Shipping & Returns

Key Features

Dimensions
1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
Operate Time
8ms
Humidity Range
5 to 95% (noncondensing)
Gold Flash
No
Wires
16", 600V Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIB2401D-N4
Zoro #
G608641398
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple

Details

Operate Time
8ms
Humidity Range
5 to 95% (noncondensing)
Gold Flash
No
Wires
16", 600V Rated
Item
Pilot Relay
Operating Temperature
-30 to 140° F
Housing Rating
NEMA 4X housing
Coil Voltage Input
24 Vac/dc ; 120 Vac ; 50-60 Hz (RIB2401D) Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc
No. of Relays & Contact Type
One (1) DPDT Continuous Duty Coil
Approvals
UL Listed, C-UL, CE, UL508 (All models)
Coil Current
24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 31 mA @ 120 Vac (RIB2401D) 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc
Relay Status
LED On - Activated
Override Switch
No
Expected Relay Life
10 million cycles minimum mechanical
Contact Ratings
10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120VA) 5A Max

Description

Rib enclosed relay rib2401d-n4, 10a, nema 4/4x, dpdt, 24vac/dc/120vac the pilot series contains relays that are rated at 10 or 15 amps. They have been packaged to save the installer the time, trouble and expense of buying separate components relay, led indicator, socket, mounting rail, transient protection and housing and assembling them on the job or at the shop.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
