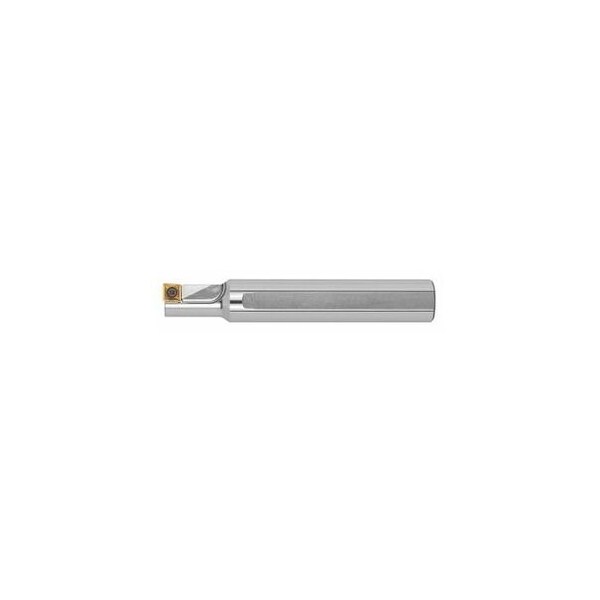

4-in-1 Drilling and Turning Tool, 1.5XD, Left-Hand, Diameter: 10mm
- Mfr # 268405 10
- Zoro # G814819260
product price:Â
$
234.99
/ea
Free Shipping & Returns
Key Features
Diameter
10 mm
Series
4 in 1
Cutting Direction
Left-Hand
Overall Length
90 mm
Insert Shape
Parallelogram
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 268405 10
- Zoro #
- G814819260
- UPC #
- -
- Country of Origin
- Czechia
- Item
- Boring bar
- Series
- 4 in 1
- Cutting Direction
- Left-Hand
- Insert Shape
- Parallelogram
- Reach
- 15 mm
- Coolant Through
- Yes
Description
Plain shank. Application: 1. Facing of end faces. 2. Drilling drilling out and drilling from solid - flat drilled hole end. 3. Internal longitudinal turning. 4. External longitudinal turning. Note: Choose corner radii and toolholder size as large as possible. Drilling tolerance + 0.15 mm for drilling processes with a driven tool. When drilling greater than nominal diameter, residual material will remain. Always use internal cooling for drilling at least 5 bar. Through-coolant: yes Reach L1: 15 mm Shank Diameters: 12 mm Overall length L: 90 mm suitable indexable insert: ZCMX 05 Pack of insert screws: 269028 40 IP6, 0.6 Nm
