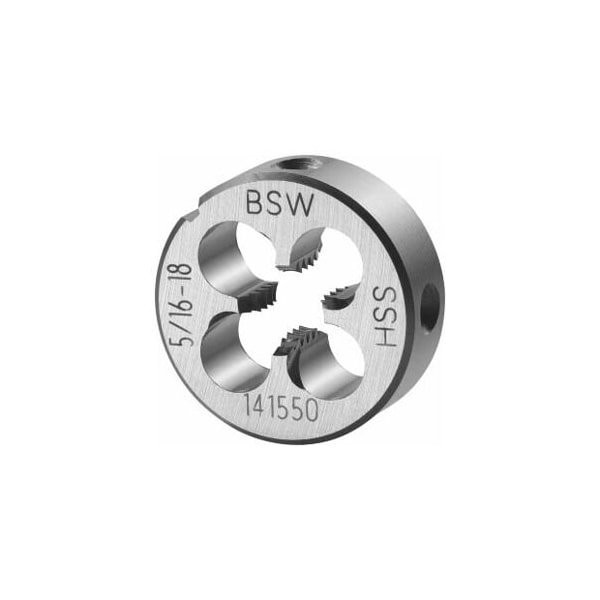

5/16in-18 HSS Round Die, for Whitworth Threads to BSW Standards, Closed/Pre-Slit Form
Mfr # 141550 W5/16
Zoro # G114389456
product price:Â $71.85
/eaKey Features
Thread Type
BSW
Die Material
HSS
Size
W5/16 mm
Standards
EN 22568
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 141550 W5/16
- Zoro #
- G114389456
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Die Thread Size
- 5/16"-18
- Size
- W5/16 mm
Details
- Item
- Die
- Thread Type
- BSW
- Die Material
- HSS
- Standards
- EN 22568
Description
Closed, pre-slit form, with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Application: For Whitworth threads to BSW standard BS84 in the tolerance field medium. Standard: EN 22568 Threads per inch: 18 Thread Dia. 7.94 mm External Dia. 25 mm Height: 9 mm
