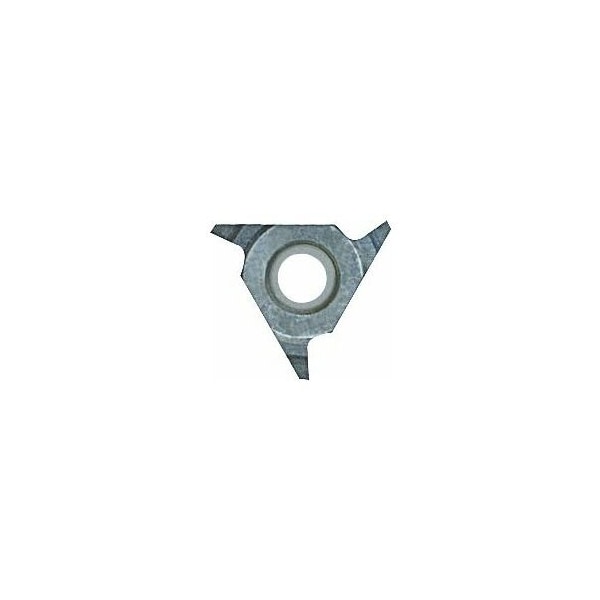

60 Degree Milling Insert, 2mm Pitch
Mfr # 217500 2
Zoro # G016115566
product price: $69.55
/eaKey Features
Insert Material
Carbide
Grade
HB7720
Application
Internal
Cutting Direction
right-hand and left-hand
Insert Thickness
2.34 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217500 2
Zoro #
G016115566
UPC #
-
Country of Origin
Germany
Dimensions
Insert Thickness
2.34 mm
External Dia.
10.6 mm
Depth
1.159 mm
Details
Item
Cutter insert for circular milling
Insert Material
Carbide
Grade
HB7720
Pitch
2 mm
Application
Internal
Cutting Direction
right-hand and left-hand
Thread Pitch
2 mm
Full Profile
Yes
Type
3
Number of Teeth
3
Insert Geometry
Full profile
Thread profile
Full profile
Number of Clamping Slots
3
Flank Angle
60°
Description
Note: 55 deg. inserts on request. Cutting direction: right-hand and left-hand Number of cutting edges Z: 3 Insert geometry: Full profile Application: Internal ExternalD: 10.6 mm Depth t: 1.159 mm Insert thickness E: 2.34 mm for threads : M16
