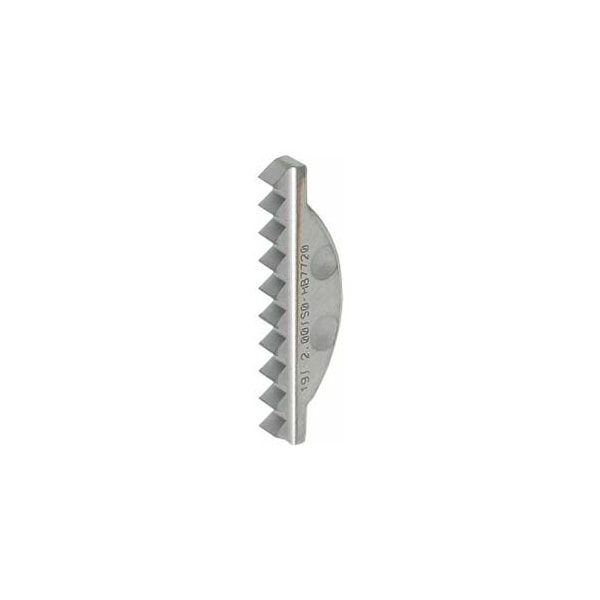

60 Degree Milling Insert for Internal Thread, 2mm Pitch
Mfr # 218055 2
Zoro # G816115773
product price: $92.85
/ea
Free Shipping & Returns
Key Features
Insert Size
19 mm
Insert Material
Carbide
Grade
HB7720
Cutting Direction
right-hand and left-hand
Flank Angle
60°
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
218055 2
Zoro #
G816115773
UPC #
-
Country of Origin
Israel
Dimensions
Insert Size
19 mm
Details
Insert Material
Carbide
Grade
HB7720
Cutting Direction
right-hand and left-hand
Pitch
2 mm
Item
Cutter insert for milling
Flank Angle
60°
Thread Pitch
2 mm
Number of Teeth
10
Correction Factor
2.5
Thread profile
Full profile
For Threads
M14; M16
Full Profile
Yes
Description
Version: Sturdy milling inserts for high feed rates and high productivity. Single-edged Application: For metric internal threads 60 deg. to DIN / ISO R 262 DIN 13 tolerance class 6H. Note: Always fit the thread milling inserts with the marks matching- otherwise the thread will be distorted! Sides have either a mark or no mark. Feed fz = HB 7720 in steel 900 N/mm2 = 0.15 mm / tooth. Cutting direction: right-hand and left-hand Insert size: 19 mm
