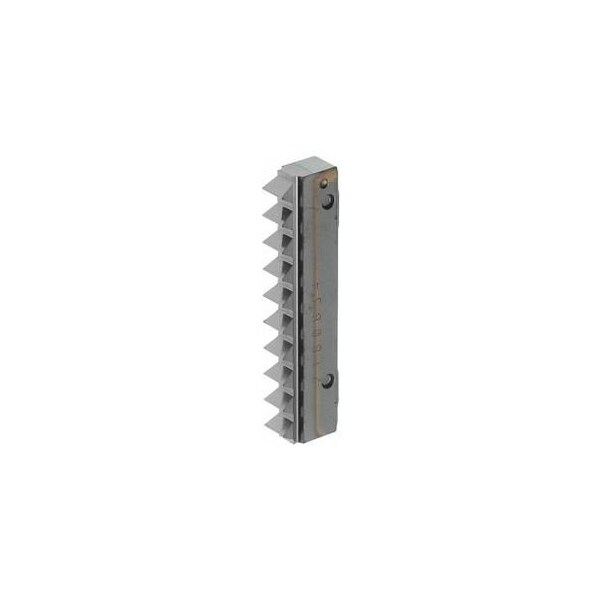

60 Degree Milling Insert for Internal Thread, 4mm Pitch
Mfr # 218064 4
Zoro # G416115807
product price:Â
$
178.99
/ea
Free Shipping & Returns
Key Features
Coating
TiAlN
Insert Material
Carbide
Cutting Direction
right-hand and left-hand
Insert Size
41 mm
Grade
HB7735
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218064 4
- Zoro #
- G416115807
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Insert Size
- 41 mm
Details
- Item
- Cutter insert for milling
- Pitch
- 4 mm
- Coating
- TiAlN
- Insert Material
- Carbide
- Cutting Direction
- right-hand and left-hand
- Grade
- HB7735
- Correction Factor
- 2.5
- For Threads
- M36; M39
- Full Profile
- Yes
- Thread Pitch
- 4 mm
- Number of Teeth
- 10
- Thread profile
- Full profile
- Flank Angle
- 60°
Description
Version: Sturdy milling inserts for high feed rates and high productivity. Double-edged. Application: For metric internal threads 60 deg. to DIN / ISO R 262 DIN 13 tolerance class 6g. Note: Always fit the thread milling inserts with the marks matching- otherwise the thread will be distorted! Sides have either a mark or no mark. Feed fz = HB 7720 in steel 900 N/mm2 = 0.15 mm / tooth. Cutting direction: right-hand and left-hand Insert size: 41 mm
