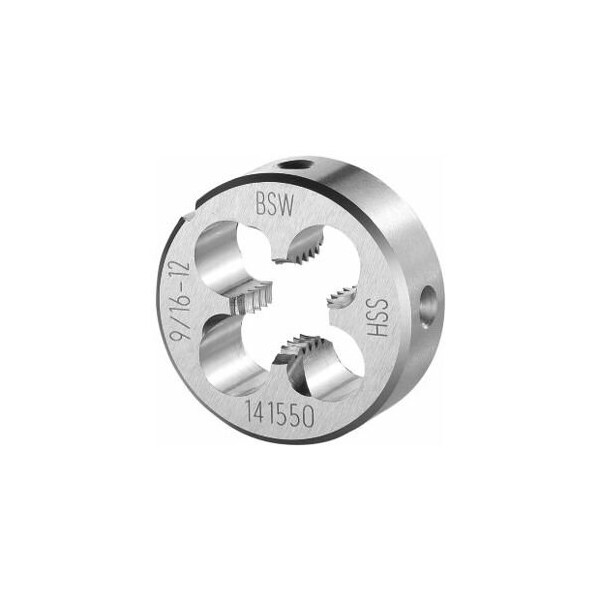

9/16in-12 HSS Round Die, for Whitworth Threads to BSW Standards, Closed/Pre-Slit Form
Mfr # 141550 W9/16
Zoro # G114389869
product price:Â $121.99
/ea
Free Shipping & Returns
Key Features
Thread Type
BSW
Die Material
HSS
Standards
EN 22568
Size
W9/16 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
141550 W9/16
Zoro #
G114389869
UPC #
-
Country of Origin
Germany
Dimensions
Die Thread Size
9/16"-12
Size
W9/16 mm
Details
Item
Die
Thread Type
BSW
Die Material
HSS
Standards
EN 22568
Description
Closed, pre-slit form, with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1 3/4 turns lead chamfer. Application: For Whitworth threads to BSW standard BS84 in the tolerance field medium. Standard: EN 22568 Threads per inch: 12 Thread Dia. 14.29 mm External Dia. 38 mm Height: 14 mm
Documents & Resources
Ratings & Reviews
