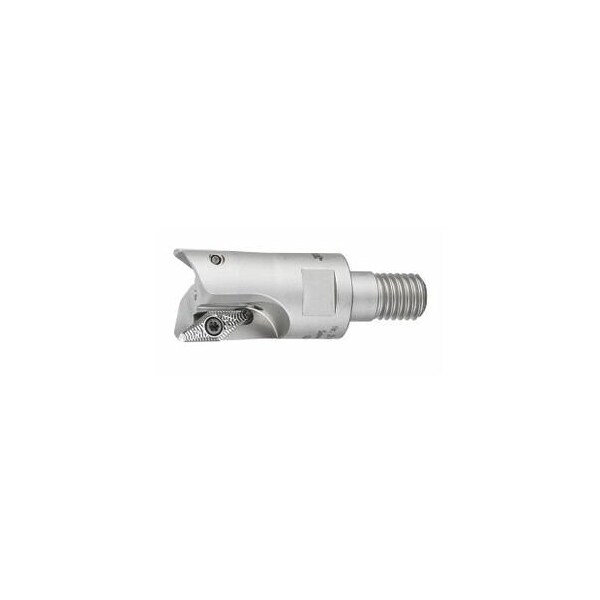

93 Degree Plunge Milling Cutter, with Threaded Shank, for VDGT. Inserts, 20mm Diameter, 2 Inserts
- Mfr # 211852 20/2
- Zoro # G816120098
product price:Â
$
314.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
93°
Overall Length
35 mm
Cutting Dia.
20 mm
Number of Teeth
2
Insert Screw
219801 (7IP; 0.9 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211852 20/2
- Zoro #
- G816120098
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 35 mm
- Cutting Dia.
- 20 mm
- Diameter 1
- 10.5 mm
- Ramping Length for αmax
- 16.4 mm
- Diameter 2
- 17.7 mm
- Diameter 3
- 18 mm
Details
- Item
- Plunge mill
- Cutting Angle
- 93°
- Number of Teeth
- 2
- Insert Screw
- 219801 (7IP; 0.9 Nm)
- Circular Interpolation Milling - Dmax
- 38 mm
- Coolant Through
- Yes
- Fz Helix
- 0.8
- Tool Exchange
- PowerCard
- Ramping Angle
- 5.23°
- Overhang
- 35 mm
- Circular interpolation milling ap
- 3.5 mm
- Dia/No. of Cutting Edges
- 20 mm/2
- Mounting Thread
- M10
- Machining Strategy
- MTC
- Circular Interpolation Milling - Dmin
- 38 mm
- Shank Type
- with threaded shank
- Axial Rake Angle
- 0°
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Can be extended as required using the threaded connection. Application: To prevent chips jamming- especially when milling deep pockets. Note: Use GARANT torque screwdriver TQ No. 211750 size 0.9 with bit No. 674252 size 7IP. Tool exchange: PowerCardD3: 18 mmD1 h6: 10.5 mmD2: 17.7 mm Overall length Ltot: 35 mm Mounting thread M: M10 Circular interpolation millingDmin: 38 mm
