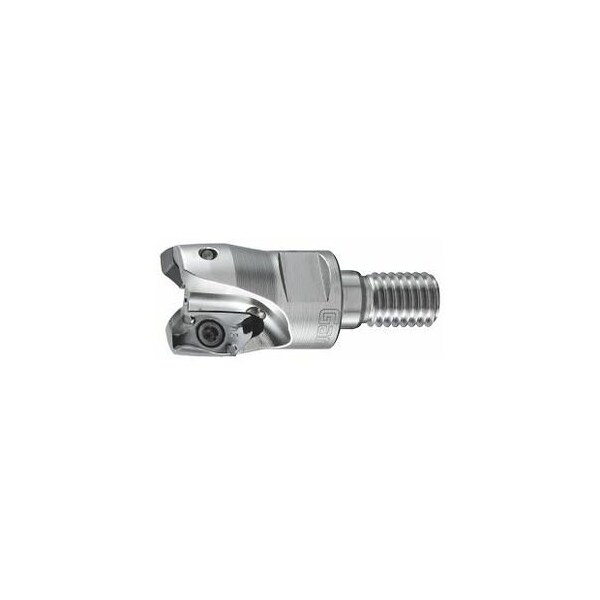

Aluminum Shoulder Mill, Threaded Shank, 25mm Diameter, 2 Inserts
Mfr # 211757 25/2
Zoro # G016120119
product price:Â
$
316.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
25 mm
Overall Length
35 mm
Cutting Angle
90°
Insert Screw
219878 4 (15IP)
Diameter 3
15 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211757 25/2
- Zoro #
- G016120119
- UPC #
- -
- Country of Origin
- Luxembourg
Dimensions
- Cutting Dia.
- 25 mm
- Overall Length
- 35 mm
- Diameter 3
- 15 mm
- Shank Size
- M12
- Ramping Length for αmax
- 12.56 mm
- Diameter 2
- 21 mm
- Diameter 1
- 12.5 mm
- Free length
- 35 mm
Details
- Item
- End / face mill
- Cutting Angle
- 90°
- Insert Screw
- 219878 4 (15IP)
- Axial Rake Angle
- 10°
- Circular Interpolation Milling - Dmin
- 40 mm
- Tool Exchange
- PowerCard
- Fz Helix
- 0.8
- Mounting Thread
- M12
- Shank Type
- With Threaded Shank
- Ramping Angle
- 6.81°
- Dia/No. of Cutting Edges
- 25 mm/2
- Coolant Through
- Yes
- Number of Teeth
- 2
- Circular interpolation milling ap
- 7.6 mm
- Circular Interpolation Milling - Dmax
- 48 mm
Description
Version: High-performance milling system for high cutting speeds. Absolutely precise insert bedding. Exceptional torsional stiffness thanks to optimised protection against centrifugal force. Attention: Before using the indexable insert No. 211776 ALU r = 5.0 mm and 211777 ALU r = 6.0 mm- the insert seats of the carrier must be modified. Note: The recommended torque for fastening the clamping screws No. 219878 4 and 219878 5 is 3.2 Nm. Tool exchange: PowerCard Overall length Ltot: 35 mmD1 h6: 12.5 mmD2: 21 mm Mounting thread M: M12 Circular interpolation millingDmin: 40 mm Circular interpolation millingDmax: 48 mm
