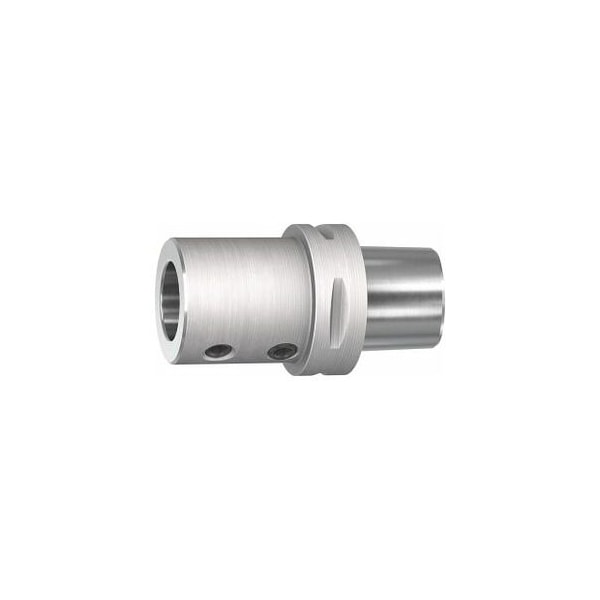

Arbor for Indexable Drills, PSC63 Short, for Shank Diameter: 32mm
Mfr # 308585 32
Zoro # G014776264
product price:Â $344.99
/ea
Free Shipping & Returns
Key Features
Outside Dia.
52 mm
Concentricity
≤ 3 µm
Taper Size
PSC63
Balance Quality
G 2.5 at 25,000 rpm
Projection
75 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308585 32
- Zoro #
- G014776264
- UPC #
- -
- Country of Origin
- Switzerland
Dimensions
- Outside Dia.
- 52 mm
- Taper Size
- PSC63
Details
- Item
- Side lock arbor
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
- Projection
- 75 mm
- Coolant Through
- Yes
- Standards
- ISO 26623-1
Description
Position of the grub screw for countersinking in the indexable drill offset by 0.4 mm. When tightening the increased contact face Dia is clamped against the front face of the arbor. Better support, allowing higher feed rates. High concentricity due to 3 um ground flat contact face. With RFID/Balluffchip bore. Application: For mounting all standard indexable drills to DIN 6595, Part 1. Suitable for: All indexable drills with parallel shank to DIN 6595, Part 1. Optional extras: Coolant tube No. 309885, socket No. 309893. Machining strategy: HPC Overhang dimension A: 75 mm External Dia D: 52 mm
