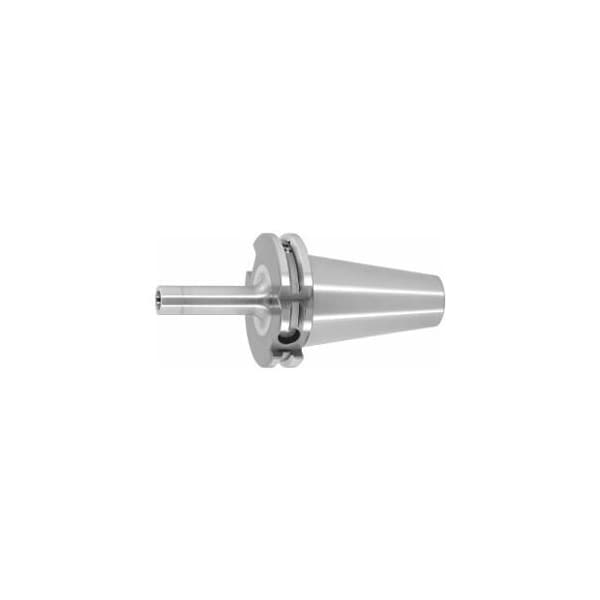

Arbor for Screw-in Milling Cutters with Thread, SK 40, M16X75
Mfr # 301309 M16X75
Zoro # G614776169
product price: $224.99
/ea
Free Shipping & Returns
Key Features
Standards
ISO 7388-1
Bore Dia.
17 mm
Outside Dia.
34 mm
Balance Quality
G 2.5 at 25,000 rpm
Overall Length
75 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
301309 M16X75
Zoro #
G614776169
UPC #
-
Country of Origin
Germany
Dimensions
Bore Dia.
17 mm
Outside Dia.
34 mm
Overall Length
75 mm
Thread Size
M16x75
Taper Size
SK40
Dia.
29 mm
Details
Standards
ISO 7388-1
Item
Threaded copy mill arbor
Balance Quality
G 2.5 at 25,000 rpm
Projection
94 mm
Machining Strategy
HSC
Concentricity
≤ 3 µm
Shank Shape
ADB
Description
Plain design. Application: To take screw-in milling cutters with thread. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835. Machining strategy: HSC Overhang dimension A: 94 mm Bore Dia D1 tolerance IT6: 17 mm Dia D2: 29 mm External Dia D: 34 mm Reach L1: 75 mm L2: 5 mm
