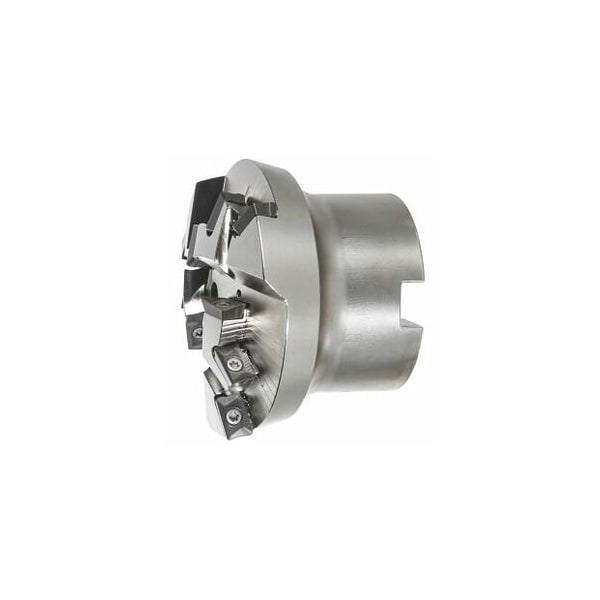

Chamfer Mill, with Bore, 15 Degrees
- Mfr # 215795 15
- Zoro # G416115593
product price:Â
$
835.99
/ea
Free Shipping & Returns
Key Features
Overall Length
52 mm
Shank Type
with bore
Large End Dia.
70 mm
Coolant Through
Yes
Insert Screw
219814 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215795 15
- Zoro #
- G416115593
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 52 mm
- Large End Dia.
- 70 mm
- Flute Length
- 7 mm
- Achievable Chamfer Height
- 7 mm
- Mounting Bore Dia.
- 22 mm
- Achievable Chamfer Width
- 27 mm
- Achievable Chamfer Length
- 27.5 mm
Details
- Item
- Indexable end mill
- Shank Type
- with bore
- Chamfer Angle
- 15 Degrees
- Coolant Through
- Yes
- Insert Screw
- 219814 (8IP; 1.2 Nm)
- Number of Effective Inserts
- 3
- Number of Indexable Inserts
- 9
- Tool Exchange
- PowerCard
Description
Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 9 Overall length Ltot: 52 mm smallestD: 17 mm largestD1: 70 mm achievable chamfer width b: 27 mm
