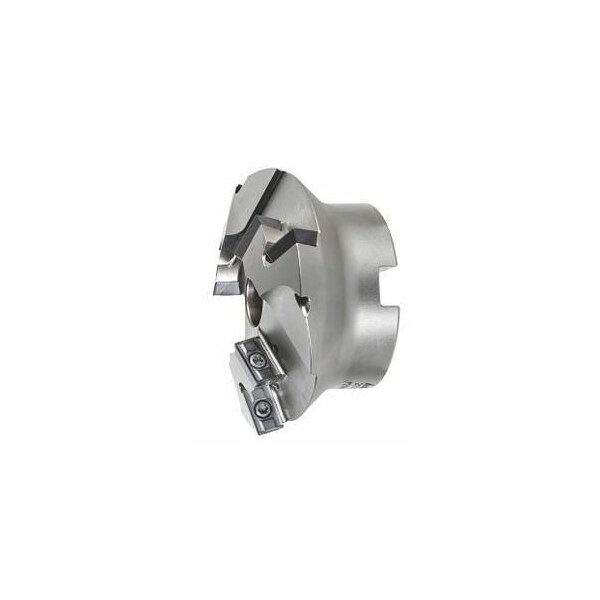

Chamfer Mill, with Bore, 20 Degrees
Mfr # 215700 20
Zoro # G216115496
product price:Â $759.99
/ea
Free Shipping & Returns
Key Features
Overall Length
50 mm
Insert Screw
219811 (15IP; 5.0 Nm)
Shank Type
with bore
Coolant Through
Yes
Large End Dia.
91 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215700 20
Zoro #
G216115496
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
50 mm
Large End Dia.
91 mm
Achievable Chamfer Height
10 mm
Mounting Bore Dia.
27 mm
Achievable Chamfer Length
30 mm
Flute Length
10 mm
Achievable Chamfer Width
28.5 mm
Details
Item
Indexable end mill
Insert Screw
219811 (15IP; 5.0 Nm)
Shank Type
with bore
Coolant Through
Yes
Chamfer Angle
20°
Tool Exchange
PowerCard
Number of Indexable Inserts
6
Number of Effective Inserts
3
Description
Note: - Recommended milling inserts for chamfering: No. 215720- 215724- 215728- 215744- 215758. - If other milling inserts are used- the tool life may be less and surface quality may suffer. - Use GARANT torque screwdriver TQ No. 211750 size 5.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 6 Overall length Ltot: 50 mm smallestD: 35 mm largestD1: 91 mm achievable chamfer width b: 28.5 mm
