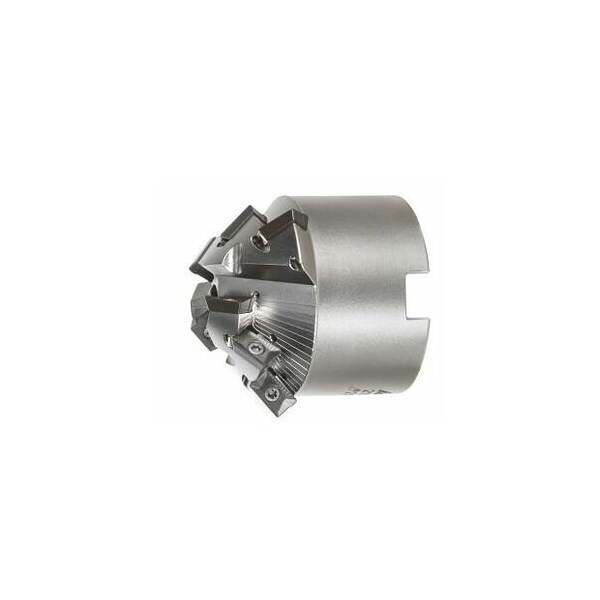

Chamfer Mill, with Bore, 40 Degrees
Mfr # 215795 40
Zoro # G516115561
product price: $861.99
/ea
Free Shipping & Returns
Key Features
Overall Length
52 mm
Shank Type
with bore
Large End Dia.
59 mm
Coolant Through
Yes
Insert Screw
219814 (8IP; 1.2 Nm)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215795 40
Zoro #
G516115561
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
52 mm
Large End Dia.
59 mm
Mounting Bore Dia.
22 mm
Achievable Chamfer Height
17.8 mm
Achievable Chamfer Length
27.5 mm
Flute Length
17.8 mm
Achievable Chamfer Width
19 mm
Details
Chamfer Angle
40°
Shank Type
with bore
Item
Indexable end mill
Coolant Through
Yes
Insert Screw
219814 (8IP; 1.2 Nm)
Number of Indexable Inserts
9
Number of Effective Inserts
3
Tool Exchange
PowerCard
Description
Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 9 Overall length Ltot: 52 mm smallestD: 17 mm largestD1: 59 mm achievable chamfer width b: 19 mm
