Shop GARANT

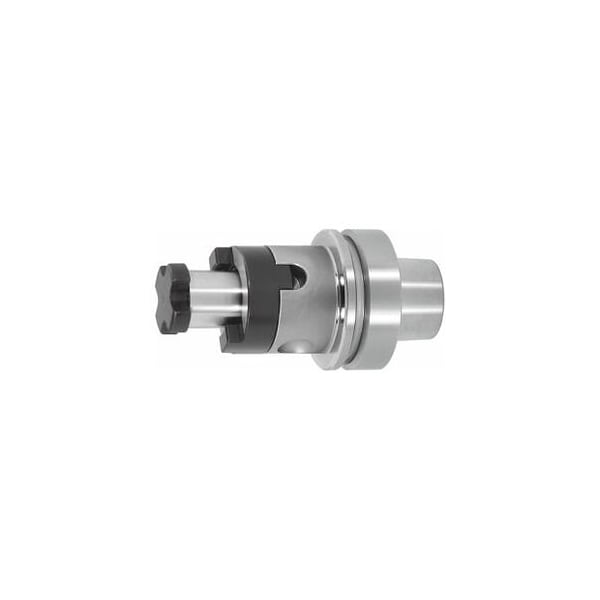

Combination Face Mill Adapter, HSK-F 63 Short, Clamping Diameter: 16mm

  • Mfr # 306121 16
  • Zoro # G714776489
product price:
$
245.99
/ea
Free Shipping & Returns

Key Features

Spare Milling Cutter Lock Screw No. 309860 / 309861
16
Spare Drive Ring No. 309870
16
Milling Mandrel Length
17 mm
Balance Quality
G 2.5 at 25,000 rpm
Suitable Toggle Spanner No. 309840
16
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
306121 16
Zoro #
G714776489
UPC #
-
Country of Origin
India

Dimensions

Milling Mandrel Length
17 mm
Clamping Dia.
16 mm
Spigot Dia.
16 mm
Outside Dia.
32 mm
Taper Size
HSK63F

Details

Spare Milling Cutter Lock Screw No. 309860 / 309861
16
Spare Drive Ring No. 309870
16
Balance Quality
G 2.5 at 25,000 rpm
Suitable Toggle Spanner No. 309840
16
Shape
F
Item
Milling cutter spigot
Projection
60 mm
Machining Strategy
HPC
Concentricity
≤ 6 µm

Description

With RFID/Balluffchip bore. HSK mating faces machined. Application: For clamping shell end mills and milling cutter heads with longitudinal or transverse groove. Supplied with: Including drive key, face mill drive ring, and milling cutter lock screw No. 309860. Optional extras: Toggle wrench No. 309840, locking screw for internal coolant supply No. 309861. Note: Without a thread for the coolant pipe. Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 60 mm External Dia D: 32 mm Milling mandrel length L3 with drive ring: 17 mm Milling mandrel length L4: 27 mm Spare milling cutter lock screw No. 309860 / 309861: 16 Spare drive ring No. 309870: 16
